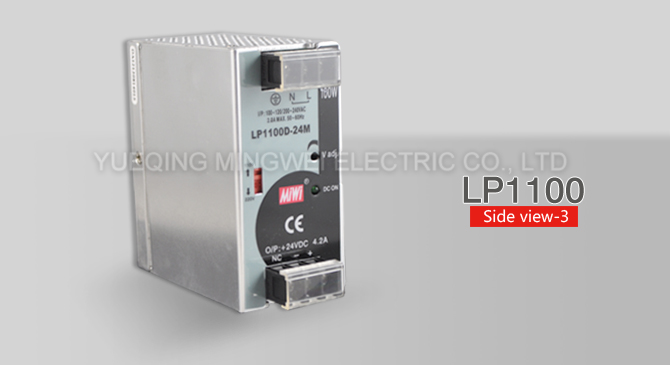

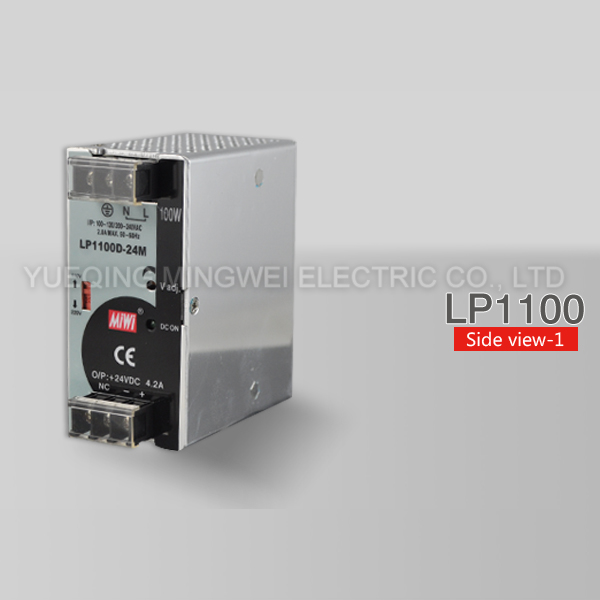

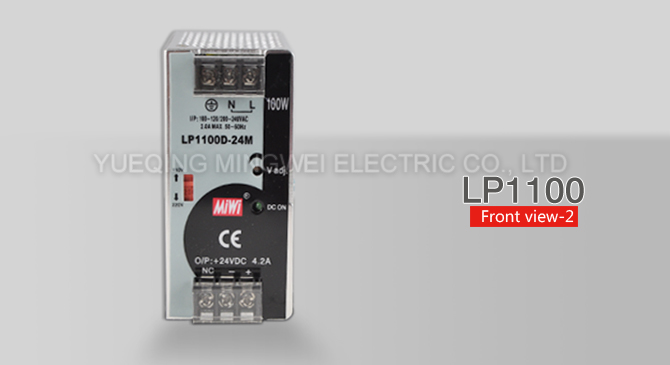

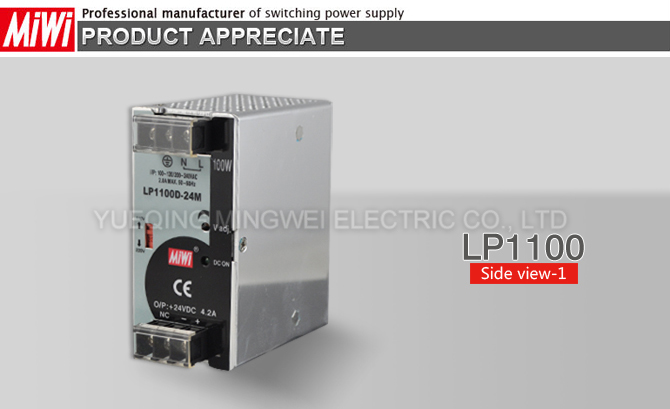

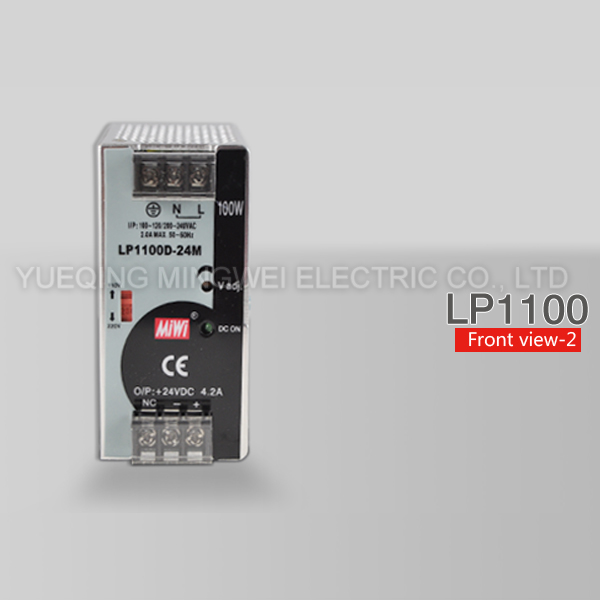

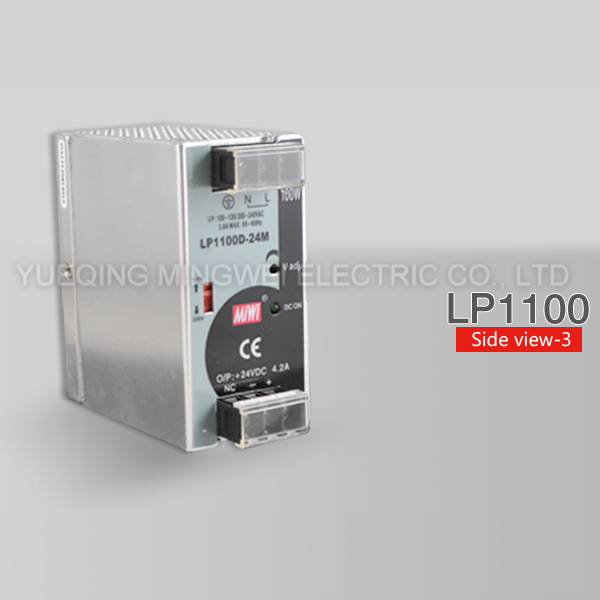

LP1100
LP series
Print This Page
In the favorites
E-Mail : maggie-liu@yqmingwei.com
PDF : Download Technical Documents
- Product Overview
- Send Inquiry
-
1.Features
1.Protection charateristic:short circuit/overload/overvoltage
2.High efficiency,hihg reliability and long serive life.
3.Natural air cooling
4.100% full load burning test
5.LED power indication
2. Specification
Model
SpecificationLP1100D-12MLP1100D-24MOutputDC Output Voltage12V24VOutput Voltage tolerance± 1%± 1%Rated Output Current8.3A4.2AOutput Current Range0-8.3A0-4.2ADC Output Power99.6 W100.8 WTripple and Noise120mVp-p240mVp-pAdjustable Range for DC Voltage11.4-13.2V20.5-26.5VInputAC Input Voltage Range85-132VAC/176-264VAC selected by swith or 248-373VDC 47~63Hz;AC input current2A/115VAC 1A/230VACEfficiency83%85%AC Inrush CurrentCold-Start Current: 10A/115V, 20A/230VLeakage Current<2mA/240VACProtection charateristicOverload Protection110%-150%Protection mode: cut off output and restartOver Voltage Protection5.75-6.75V27-30VProtection mode: cut off output and reset automaticallyEnvironmentWork Temperature Humidity-10℃~+50℃ , 20%~90%RHStorage Temperature Humidity`-20℃~+85℃, 10%~95%RHShock resistance10~500Hz, 2G 10min,/1cycle,duration:60min each shaftSafetyVoltage withstand capacityInput-output:2KVAC Input-earth:1.5KVAC Output-earth:0.5KVACInsulation resistanceInput-output, Input-earth ,Output-earth:100M Ohms/500VDCExecutive StantandSafety StandardsCEEMC StandardsDesign refer to FCC part 15J Conduction Class BOthersWeight0.39KGSPackage30pcs/ctn 37*30*24.5size83*49*100(L*W*H)3.Please Note
1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃.
2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.
3.The tolerance is the sum of setting voltage error , voltage and current regulation factor.
-
