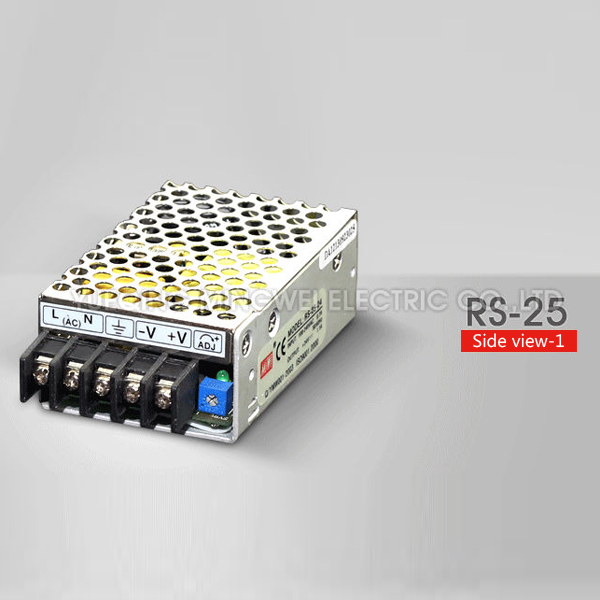

RS series_Yueqing Mingwei Electric Co., Ltd

•Universal AC input/Full range
•Protections: Short circuit / Overload / Over voltage / Over temperature
•Cooling by free air convection
•100% full load burn-in test
•High operating temperature up to 70℃
•LED indicator for power on
•No load power consumption<0.5W
•All using 105℃ long life electrolytic capacitors
•Withstand 300VAC surge input for 5 second
• Withstand 5G vibration test
•2 years warranty
•High efficiency,long life and high reliability

2. Specification

MODEL		RS-25-3.3	RS-25-5	RS-25-12	RS-25-15	RS-25-24	RS-25-48
OUTPUT	DC VOLTAGE	3.3V	5V	12V	15V	24V	48V
	RATED CURRENT	6A	5A	2.1A	1.7A	1.1A	0.57A
	CURRENT RANGE	0 ~ 6A	0 ~ 5A	0 ~ 2.1A	0 ~ 1.7A	0 ~ 1.1A	0~ 0.57A
	RATED POWER	19.8W	25W	25.2W	25.5W	26.4W	27.36W
	RIPPLE & NOISE (max.) Note.2	80mVp-p	80mVp-p	120mVp-p	120mVp-p	120mVp-p	200mVp-p
	VOLTAGE ADJ. RANGE	2.85 ~ 3.6V	4.75 ~ 5.5V	10.8 ~ 13.2V	13.5 ~ 16.5V	22 ~ 27.6V	42 ~ 54V
	VOLTAGE TOLERANCE Note.3	0.50%	0.50%	0.50%	0.50%	0.50%	0.50%
	LINE REGULATION	0.50%	0.50%	0.50%	0.50%	0.50%	0.50%
	LOAD REGULATION	2.00%	±1.0%	0.50%	0.50%	0.50%	0.50%
	SETUP, RISE TIME Note.5	1800ms, 23ms/230VAC 4000ms, 30ms/115VAC at full load
	HOLD UPTIME (Typ.)	80ms/230VAC 14ms/115VAC at full load
	VOLTAGE RANGE	88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
INPUT	FREQUENCY RANGE	47 ~63Hz
	EFFICIENCY (Typ.)	73.50%	78.50%	81.50%	83.50%	86.00%	85.00%
	AC CURRENT (Typ.)	0.7A/115VAC 0.4A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 30A/230VAC
	LEAKAGE CURRENT	<2mA / 240VAC
PROTECTION	OVERLOAD	110 ~ 180% rated output power
	OVERLOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	3.8 ~ 4.45V	5.75 ~ 6.75V	13.8 ~ 16.2V	17.25 ~ 20.25V	28.4 ~ 32.4V	55.2 ~ 64.8V
	OVER VOLTAGE	Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT	WORKING TEMP.	-20 ~ +70C (Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/C (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC (Note 4)	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH
	EMC EMISSION	Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A
OTHERS	MTBF	309.7Khrs min. MIL-HDBK-217F (25 )
OTHERS	DIMENSION	785128mm (LWH)

3. Mechanical Dimension

4.Block Diagram

5.Derating Curve

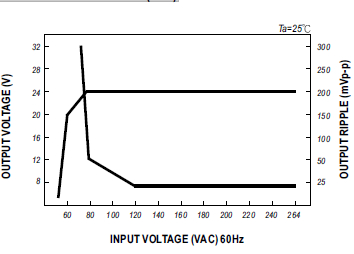

6.Static Characteristics (24V)

7.Please Note

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor.

3.Tolerance : includes set up tolerance, line regulation and load regulation.

4.Line regulation is measured from low line to high line at rated load

5.Load regulation js measured form 0% to 100% rated load

6.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests,please refer to"EMI testing of component power supplies."
