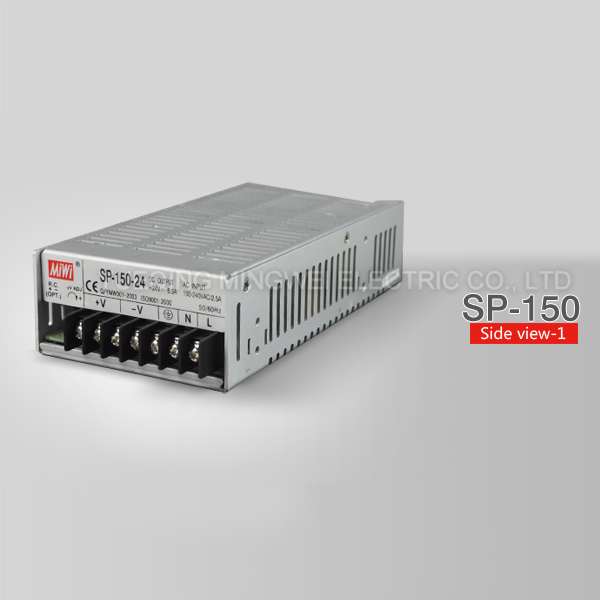

SP series_Yueqing Mingwei Electric Co., Ltd

Model Specification	SP-150-3.3	SP-150-5	SP-150-7.5	SP-150-12	SP-150-13.5	SP-150-15	SP-150-24	SP-150-27	SP-150-48
DC Output Voltage	3.3V	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Iutput Voltage Error	± 2%	± 2%	± 2%	± 2%	± 2%	± 2%	± 1%	± 1%	± 1%
Rated Output Current	30A	30A	20A	12.5A	11.2A	10A	6.3A	5.6A	3.2A
Output Current Range	0-30A	0-30A	0-20A	0-12.5A	0-11.2A	0-10A	0-6.3A	0-5.6A	0-3.2A
Tripple and Noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	150mVp-p	150mVp-p	250mVp-p
Iniet Stability	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Tolerance Voltage	± 1%	± 1%	± 1%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%
DC Output Power	99 W	150W	150W	150W	151.2W	150W	151.2W	151.2W	153.6W
Efficiency	67%	75%	79%	80%	83%	81%	83%	84%	84%
Adjustable Range for DC Voltage	3.14 ~ 3.63V	4.75 ~ 5.5V	7.13 ~ 8.25V	11.4 ~ 13.2V	12.8 ~ 14.9V	14.3 ~ 16.5V	22.8 ~ 26.4V	25.7 ~ 29.7V	45.6 ~ 52.8V
AC Input Voltage Range	85 ~ 264VAC 120 ~ 370VDC 47-63HZ
Power factor	PF>0.93/230VAC PF>0.98/115VAC at full load
Input Current	2.5A/115V 1.2A/230V
AC Inrush Current	Cold-Start Current: 40A/230V
Leakage Current	<2mA/240VAC
Overload Protection	105%~150% rated output power ,Protection type : Constant current limiting, recovers automatically after fault condition is removed
Over Voltage Protection	3.8-4.46V	5.75-6.75V	8.63-10.13V	13.8-16.2V	15.53-18.2V	17.25-20.25V	27.6-32.4V	31.05-36.45V	55.2-64.8V
Over Voltage Protection	Protection type : Shut down o/p voltage, re-power on to recover
REMOTE CONTROL(OPTION)	CN1:4 ~ 10VDC POWER ON, <0 ~ 0.8VDC POWER OFF
Temperature Coefficient	±0.05%/℃ (0 ~ 50℃)
Start, Rise, Hold time	600ms, 30ms at full load ,hold time:20ms at full load
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working Temperature and Humidity	.-10~+60℃ (Refer to "Derating Curve"), 20 ~ 90% RH non-condensing
Storage Temperature and Humidity	`-20℃~+85℃, 10%~95%RH
Overall Dimension	1999550mm
MTBF	191.2k hrs min.
Safety Standards	CE
EMC Standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A

3. Mechanical Dimension

4.Block Diagram

5.Derating Curve

6.Output Derating VS Input Voltage

7. Please Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”

5. Derating may be needed under low input voltages. Please check the derating curve for more details.
