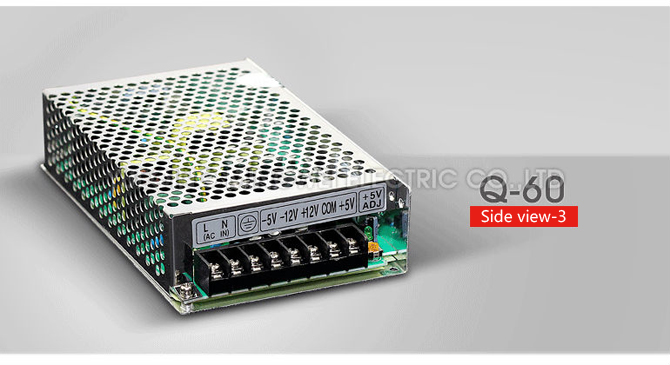

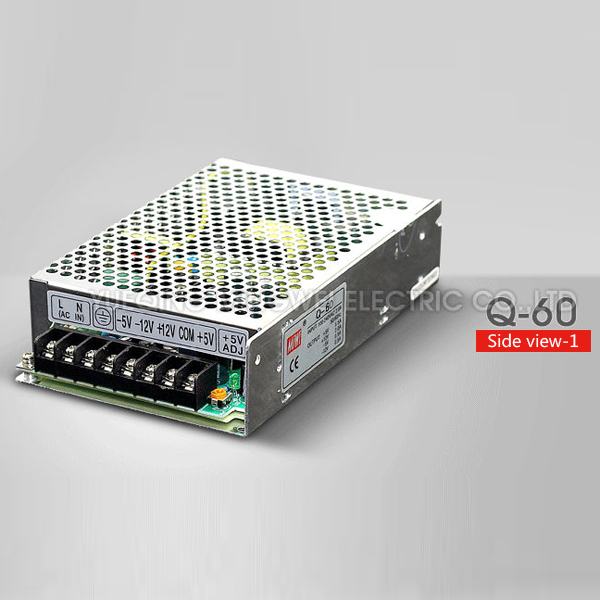

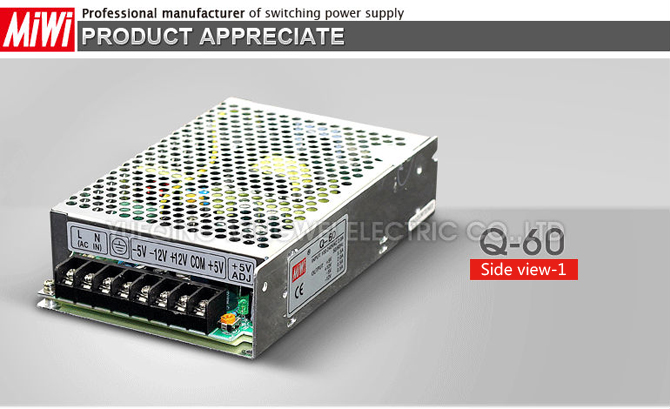

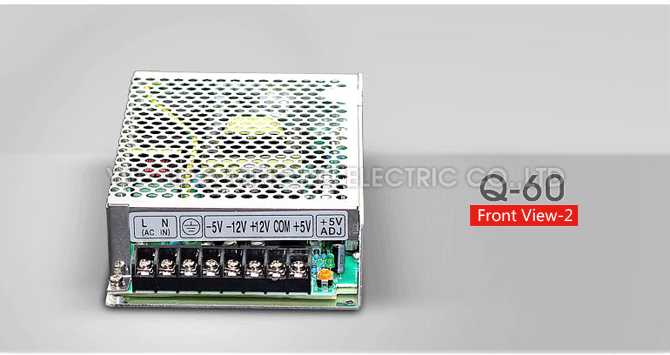

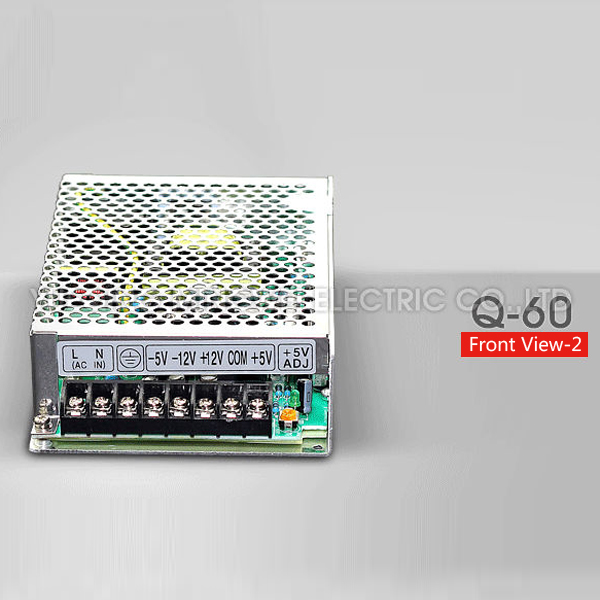

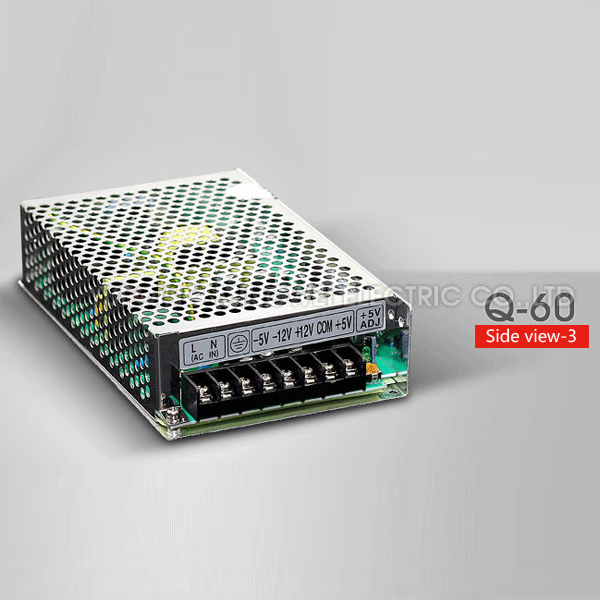

Model Specification	Q-60
DC Output Voltage	5V	12V	`-5V	`-12V
Iutput Voltage Error	± 2%	± 6%	± 5%	± 5%
Rated Output Current	5.5A	2A	0.5A	0.5A
Output Current Range	0-5.5A	0-2A	0-0.5A	0-0.5A
Tripple and Noise	100mVp-p	120mVp-p	100mVp-p	100mVp-p
Iniet Stability	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Tolerance Voltage	± 0.5%	± 4%	± 1%	± 1%
DC Output Power	60W
Efficiency	70%	70%	70%	70%
Adjustable Range for DC Voltage	± 0.5%	± 4%	± 1%	± 1%
AC Input Voltage Range	85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
Input Current	1.3A/115V 0.8A/230V
AC Inrush Current	Cold-Start Current: 18A/115V, 36A/230V
Leakage Current	<1mA/240VAC
Overload Protection	105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery
Over Voltage Protection	…………
High Temperature Protection	…………
Temperature Coefficient	± 0.03% /℃ (0~50℃)
Start, Rise, Hold time	1.6s, 20ms, 12ms/ 115VAC 800ms, 20ms, 60ms/ 230VAC
Vibration	10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
Withstand Voltage	Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
Isolation Resistance	Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms
Working Temperature and Humidity	`-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
Storage Temperature and Humidity	`20℃~+85℃, 10%~95%RH
Overall Dimension	1599738 mm
Weight	0.55 kgs
Safety Standards	Meet UL 1012 requirement (Not apply for the mark)
EMC Standards	Meet FCC Part 15J Conduction class B

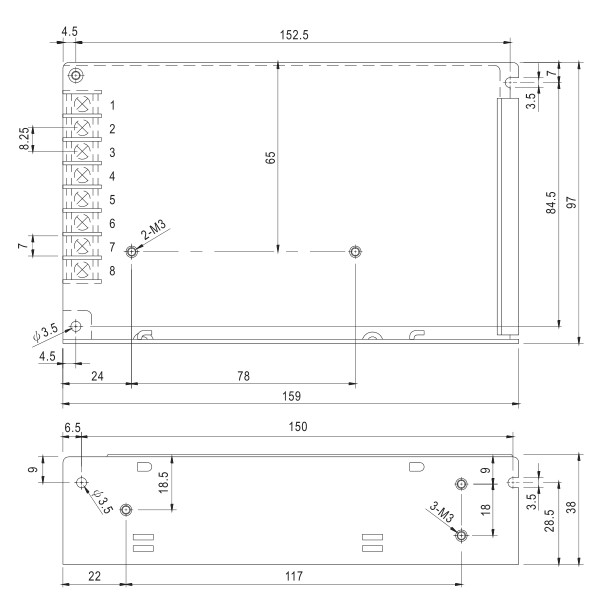

3. Mechanical Dimension

4.Please Note

1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability.
3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.
5. Load stability test: the load is from 0% to 100%, others 60%.
6. Total stability test: the load is from 0% to 100%, others 60%.
7. C2,3,6 must be knocked down.
