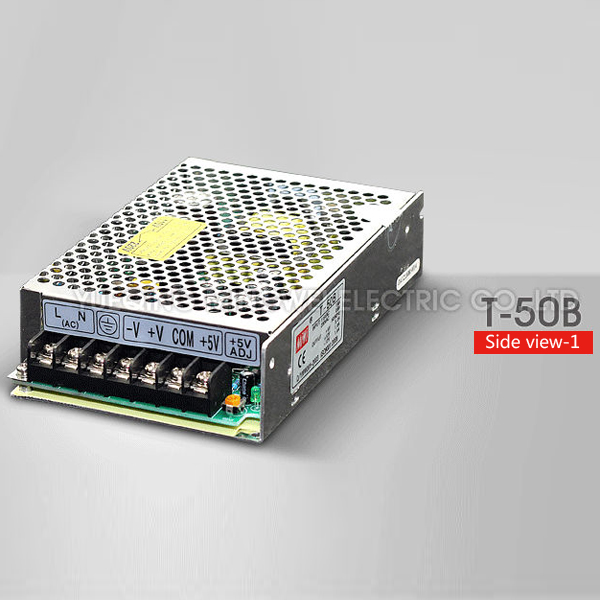

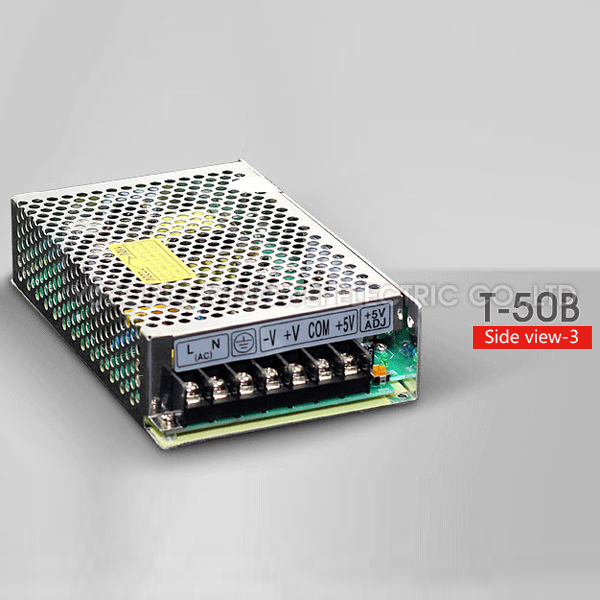

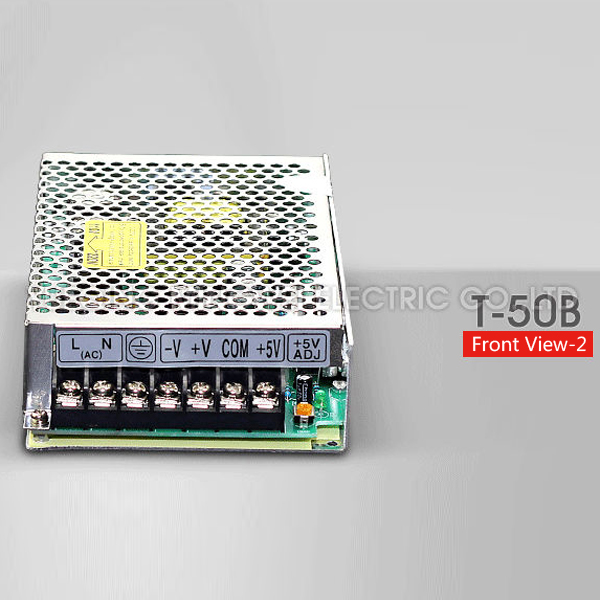

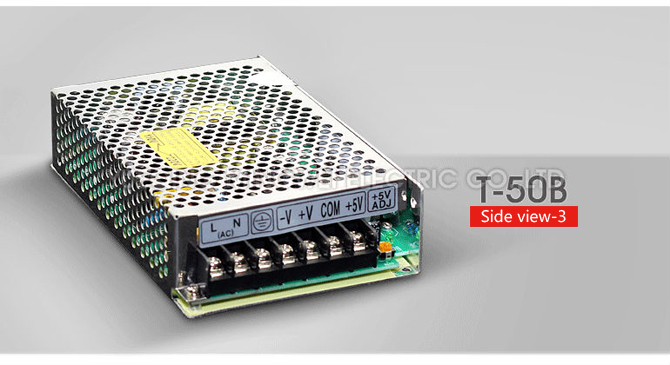

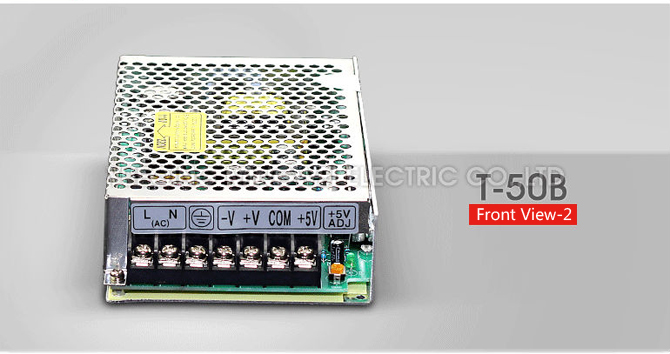

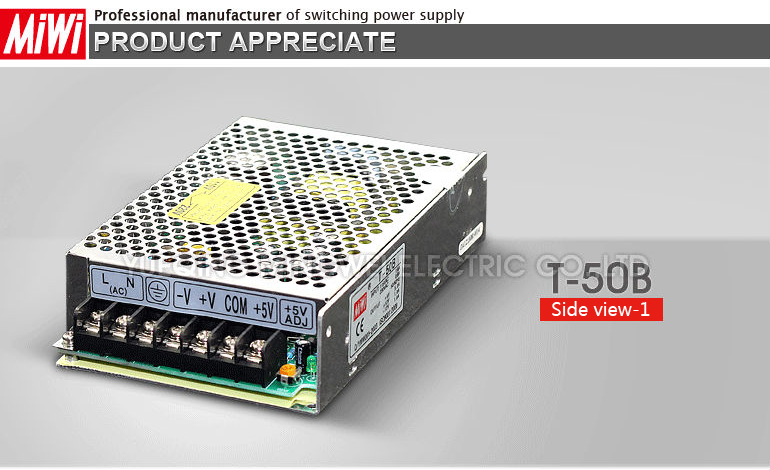

50W Triple Output Switching Power Supply

  • Product Overview
  • Send Inquiry
  • 1.Features:
    1. Low  price and high reliable.
    2. 105 `C output capacitor
    3. AC input power suitable for the world
    4. High efficiency and how  operation temperature.
    5. Soft-start current can reduce  the AC input impact effecticly.
    6. With short-circuit and overload protection.
    7. Compact size, light weight.
    8. 100% full-load buming test.
    9. installed with EMI filter, minmum wave.

    2. Specification

    Model
    Specification
    T-50 A
    T-50 B
    T-50 C
    T-50 D
    DC Output Voltage
    5V
    12V
    -5V
    55V
    12V
    -12V
    5V
    15V
    -15V
    5V
    12V
    24V
    Iutput Voltage Error
    ±2%
    ±5%
    ±5%
    ±2%
    ±5%
    ±5%
    ±2%
    ±5%
    ±5%
    ±2%
    ±6%
    ±6%
    Rated Output Current
    7A
    1A
    1A
    5A
    1A
    1A
    4A
    1A
    1A
    3A
    1A
    1A
    Output Current Range
    0.6-7A
    0.2-1A
    0.2-1A
    0.6-5A
    0.2-1A
    0.2-1A
    0.6-4A
    0.2-1A
    0.2-1A
    0.6-4A
    0.2-1.2A
    0.2-1.2A
    Tripple and Noise
    100mVP-p
    100mVP-p
    100mVP-p
    100mVP-p
    100mVP-p
    100mVP-p
    100mVP-p
    100mVP-p
    100mVP-p
    50mVP-p
    120mVP-p
    120mVP-p
    Iniet Stability
    ±0.5%
    ±0.5%
    ±0.5%
    ±0.5%
    ±0.5%
    ±0.5%
    ±0.5%
    ±0.5%
    ±0.5%
    ±0.5%
    ±1%
    ±1%
    Tolerance Voltage
    ±2%
    ±5%
    ±5%
    ±2%
    ±5%
    ±5%
    ±2%
    ±5%
    ±5%
    ±2%
    ±6%
    ±6%
    DC Output Power
    52W
    49W
    50W
    51W
    Efficiency
    66%
    69%
    71%
    72%
    Adjustable Range for DC Voltage
    `+10, -5%
    ± 10, -5%
    ± 10, -5%
    ± 10, -5%
    AC Input Voltage Range
    85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
    Input Current
    1.6A/115V 0.8A/230V
    AC Inrush Current
    Cold-Start Current: 20A/115V, 40A/230V
    Leakage Current
    <0.5mA/240VAC
    Overload Protection
    105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery
    Over Voltage Protection
    …………
    High Temperature Protection
    …………
    Temperature Coefficient
    ± 0.03% /℃ (0~50℃)
    Start, Rise, Hold time
    200ms, 100ms, 16ms
    Vibration
    10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
    Withstand Voltage
    Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
    Isolation Resistance
    Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms
    Working Temperature and Humidity
    `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
    Storage Temperature and Humidity
    `20℃~+85℃, 10%~95%RH
    Overall Dimension
    159*98*38 mm
    Weight
    0.54 kgs
    Safety Standards
    CE
    EMC Standards
    Meet FCC Part 15J Conduction class B

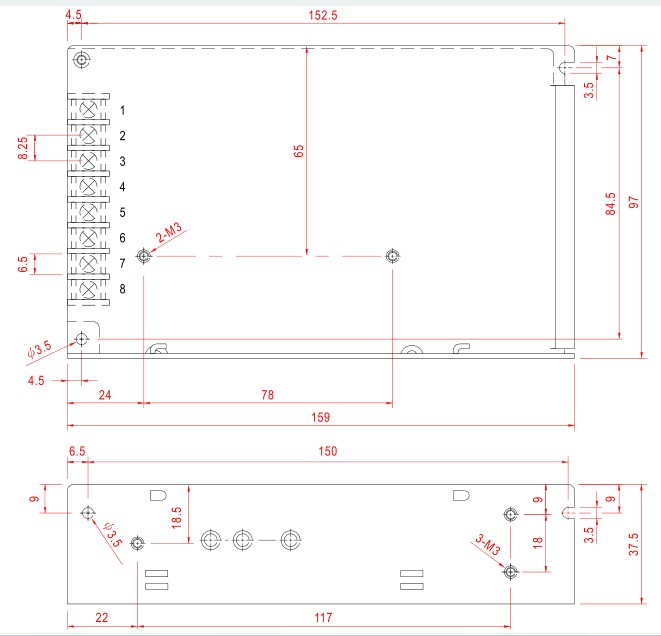

    3. Mechanical Dimension

    4. Please Note

    1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity.
    2. Error, include the setting error, line stability and load stability.
    3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
    4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.
    5. Load stability test: the load is from 0% to 100%, others 60%.
    6. Total output canbe maximum Current, total load can not exceed the maximum output power.
