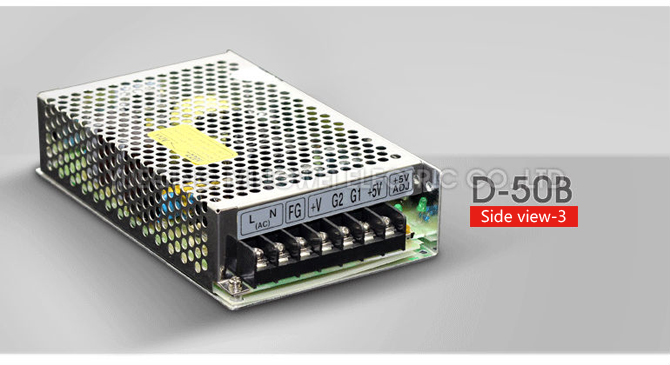

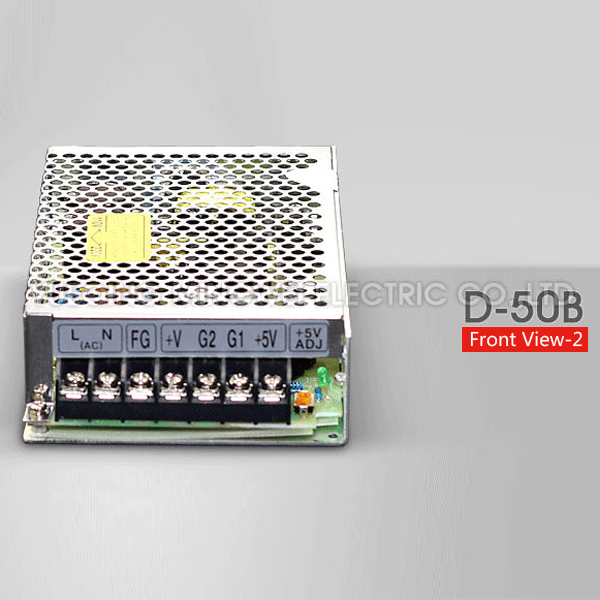

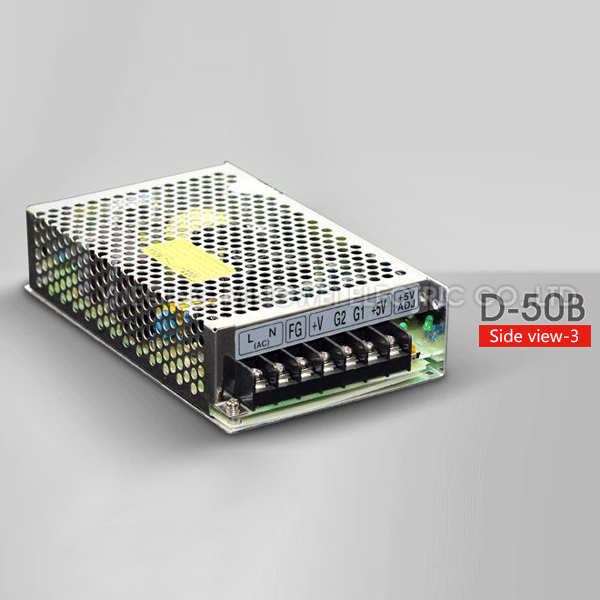

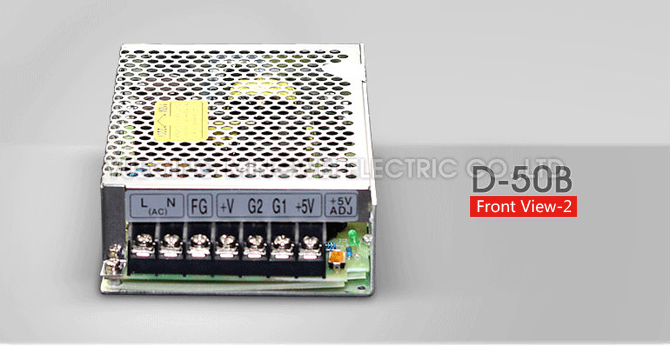

D-50B
Dual output series
Print This Page
In the favorites
E-Mail : maggie-liu@yqmingwei.com
PDF : Download Technical Documents
Online consulting：
- Product Overview
- Send Inquiry
-
1.Features1. Low price and high reliable.2. 105 `C output capacitor3. AC input power suitable for the world4. High efficiency and how operation temperature.5. Soft-start current can reduce the AC input impact effecticly.
6. With short-circuit and overload protection. 7. Compact size, light weight. 8. 100% full-load buming test. 9. installed with EMI filter, minmum wave. 2. Specification
Model
SpecificationD-50 AD-50 BDC Output Voltage5V12V5V24VIutput Voltage Error± 2%± 3, -7%± 2%± 3, -5%Rated Output Current6A2A6A1AOutput Current Range1-6A0.3-2A1-6A0.2-1ATripple and Noise50mVp-p100mVp-p50mVp-p100mVp-pIniet Stability± 0.5%± 1%± 0.5%± 1%Tolerance Voltage± 0.5%± 5%± 0.5%8%DC Output Power54W54WEfficiency73%73%Adjustable Range for DC Voltage`+10, -5%± 10, -5%AC Input Voltage Range85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDCInput Current1.3A/115V 0.65A/230VAC Inrush CurrentCold-Start Current: 18A/115V, 36A/230VLeakage Current<0.5mA/240VACOverload Protection105%~150% Type: Foldback Current Limiting, Reset: Auto RecoveryOver Voltage Protection…………High Temperature Protection…………Temperature Coefficient± 0.03% /℃ (0~50℃)Start, Rise, Hold time200ms, 50ms, 30msVibration10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axesWithstand VoltageBetween Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVACIsolation ResistanceInput and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M OhmsWorking Temperature and Humidity`-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RHStorage Temperature and Humidity`20℃~+85℃, 10%~95%RHOverall Dimension159*98*38 mmWeight0.52 kgsSafety StandardsCEEMC StandardsMeet FCC Part 15J Conduction class B3. Mechanical Dimension
4. Please Note
1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. Total output canbe maximum Current, total load can not exceed the maximum output power.
-
