LP series is din rail type switching power supply with output voltage digtal display
LP series is din rail type switching power supply with output voltage digtal display
You are here:Home >> Proudct >> LP series is din rail type switching power supply with output voltage digtal display
LP series is din rail type switching power supply with output voltage digtal display
LP-50
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：maggie-liu@yqmingwei.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description
Model                 /           SpecificationLP-50-5LP-50D-12LP-50-24
OutputDC Output Voltage5V12V24V
Output Voltage tolerance± 2%± 1%± 1%
Rated Output Current8A4.2A 2.1A
Output Current Range0-8A0-4.2A0-2.1A
DC Output Power40W50.4W50.4W
Tripple and Noise80mVp-p120mVp-p240mVp-p
Adjustable Range for DC Voltage4.75-5.5V 11.4-13.2V20.5-26.5V
InputAC Input Voltage Range90-264VAC or 100-360VDC 47~63Hz;
AC input current0.9A/115VAC  0.45A/230VAC
Efficiency78%83%85%
AC Inrush CurrentCold-Start Current: 18A/115V, 36A/230V
Leakage Current<2mA/240VAC
Protection charateristicOverload Protection110%-150%
Protection mode: cut off output and restart
Over Voltage Protection5.75-6.75V13.8-16.2V27-30V
Protection mode: cut off output and reset automatically
EnvironmentWork Temperature Humidity-10℃~+50℃ , 20%~90%RH
Storage Temperature Humidity`-20℃~+85℃, 10%~95%RH
Shock resistance10~500Hz, 2G 10min,/1cycle,duration:60min each shaft
SafetyVoltage withstand capacityInput-output:2KVAC  Input-earth:1.5KVAC   Output-earth:0.5KVAC

Insulation resistanceInput-output, Input-earth ,Output-earth:100M Ohms/500VDC

Executive StantandSafety StandardsCE
EMC StandardsDesign refer to FCC part 15J Conduction Class B
OthersWeight 0.22KGS
Package60pcs/ctn 38.5*32*28

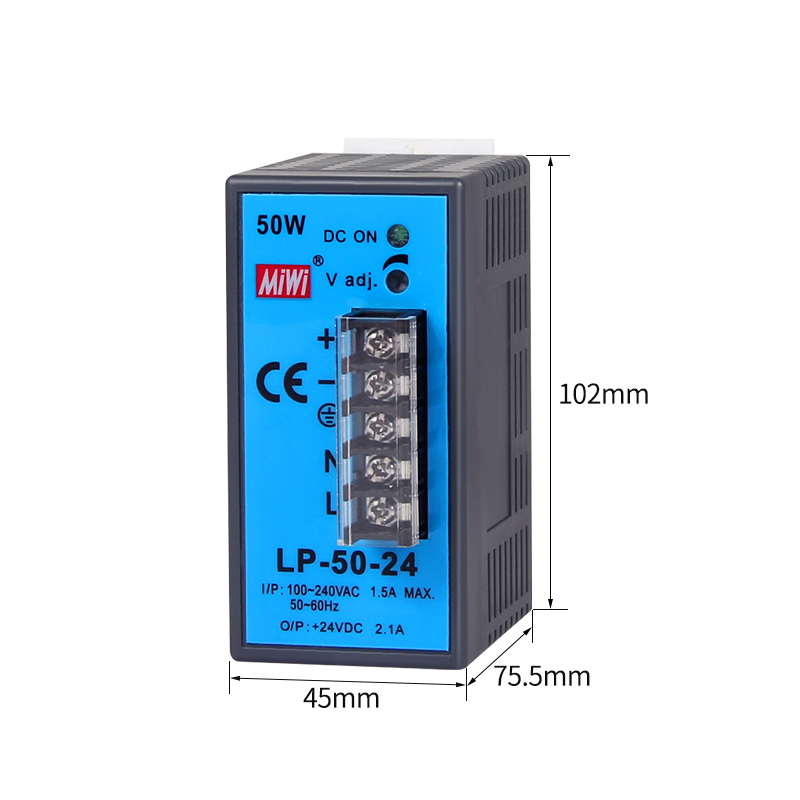

size 75.5*45*102(L*W*H)
Notes1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃.                                           2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.                                                                                                                                                          3.The tolerance is the sum of setting voltage error , voltage and current regulation factor.
