S series is regular switching power supply
S-35
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：553168801@qq.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description
Model                                SpecificationS-35-5VS-35-12VS-35-15VS-35-24V
DC Output Voltage5V12V15V24V
Iutput Voltage Error± 2%± 1%± 1%± 1%
Rated Output Current7A3A2.4A1.5A
Output Current Range0-7A0-3A0-2.4A0-1.5A
Tripple and Noise75mVp-p100mVp-p100mVp-p100mVp-p
Iniet Stability± 0.5%± 0.5%± 0.5%± 0.5%
Tolerance Voltage± 1%± 0.5%± 0.5%± 0.5%
DC Output Power35W36W36W36W
Efficiency70%76%78%78%

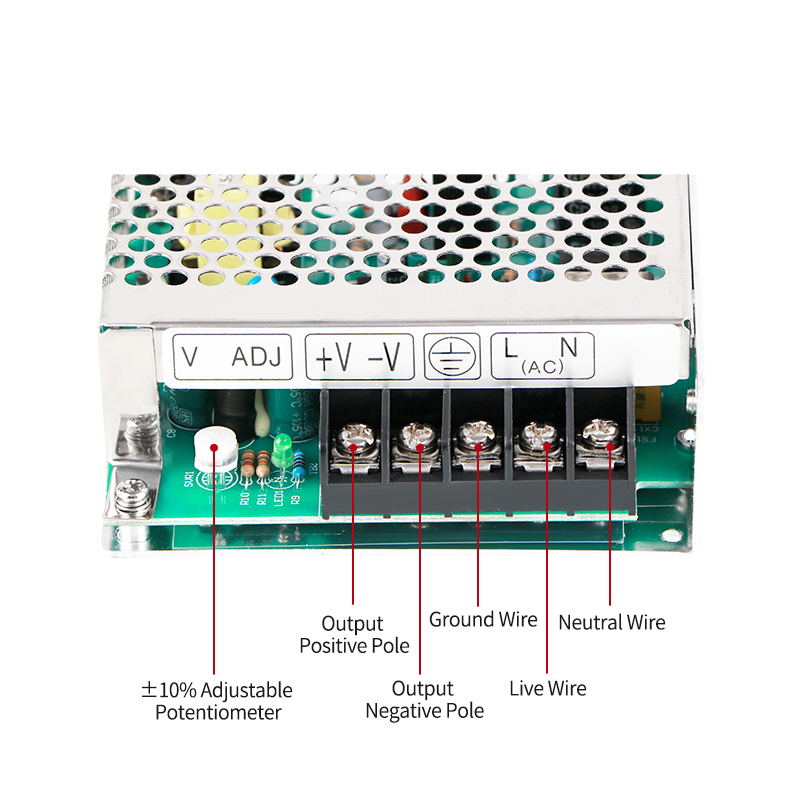

Adjustable Range for DC Voltage`+10, -5%± 10%± 10%± 10%
AC Input Voltage Range85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
Input Current0.8A/115V    0.45A/230V
AC Inrush CurrentCold-Start Current: 18A/115V, 36A/230V
Leakage Current<0.5mA/240VAC
Overload Protection105%~150%   Type: Foldback Current Limiting, Reset: Auto Recovery
Over Voltage Protection…………
High Temperature Protection…………
Temperature Coefficient± 0.03% /℃ (0~50℃)
Start, Rise, Hold time200ms, 100ms, 20ms
Vibration10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
Withstand VoltageBetween Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
Isolation ResistanceInput and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms
Working Temperature and Humidity`-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
Storage Temperature and Humidity`20℃~+85℃, 10%~95%RH

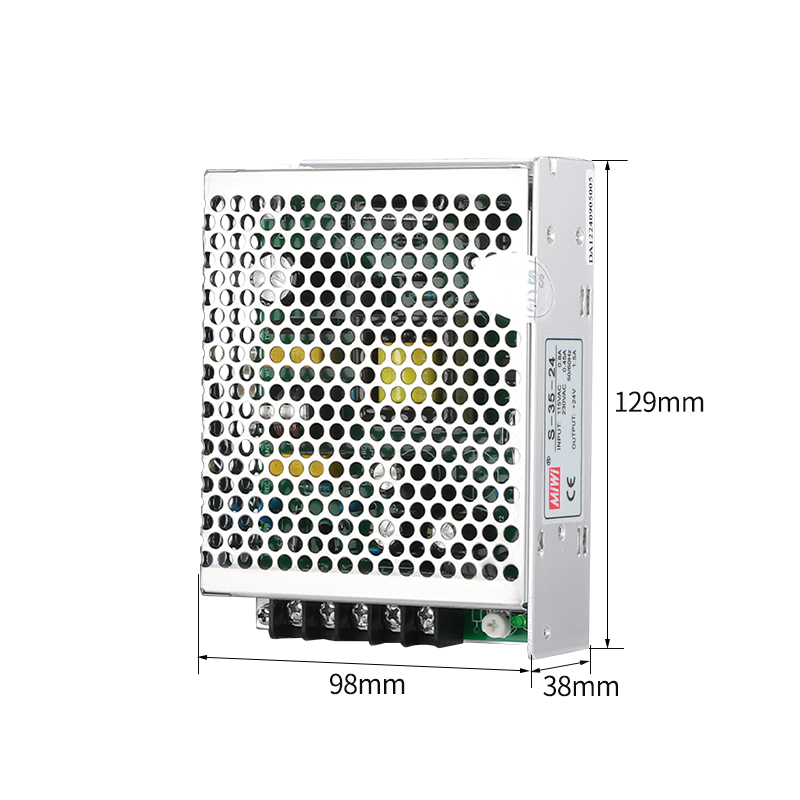

Overall Dimension129*93*38mm
Weight0.4kgs
Safety StandardsCE
EMC StandardsMeet FCC Part 15J Conduction class B
