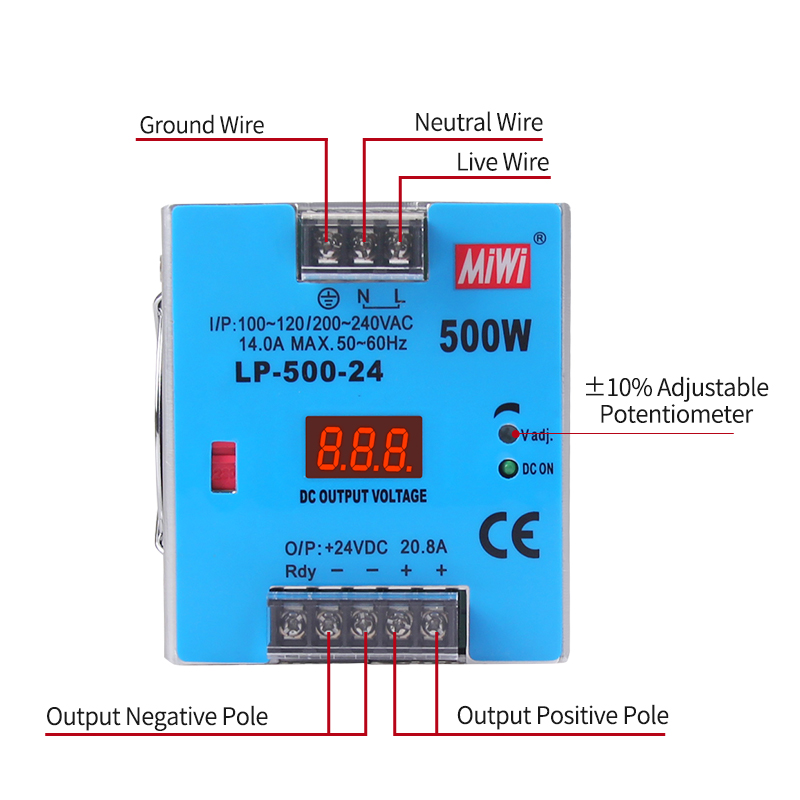

LP series is din rail type switching power supply with output voltage digtal display
LP series is din rail type switching power supply with output voltage digtal display
You are here:Home >> Proudct >> LP series is din rail type switching power supply with output voltage digtal display
LP series is din rail type switching power supply with output voltage digtal display
LP-500
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：maggie-liu@yqmingwei.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description
Model              /        SpecificationLP-500-12LP-500-24LP-500-48
OutputDC Output Voltage12V24V48V
Output Voltage tolerance± 1%± 1%± 1%
Rated Output Current37.5A20.8A 10.4A
Output Current Range0-37.5A0-20.8A0-10.4A
DC Output Power450W499.2W499.2W
Tripple and Noise120mVp-p240mVp-p300mVp-p
Adjustable Range for DC Voltage10.5-14V 20.5-26.5V44.5-51V
InputAC Input Voltage Range85-132VAC/176-264VAC selected by switch or 248-373VDC 47~63Hz;
AC input current9.5A/115VAC  4.8A/230VAC
Efficiency83%85%86%
AC Inrush CurrentCold-Start Current: 15A/115V, 30A/230V
Leakage Current<2mA/240VAC
Protection charateristicOverload Protection110%-150%
Protection mode: cut off output and reset automatically
Over Voltage Protection14-18V27-30V51-54V
Protection mode: cut off output and reset automatically
EnvironmentWork Temperature Humidity-10℃~+50℃ , 20%~90%RH
Storage Temperature Humidity`-20℃~+85℃, 10%~95%RH
Shock resistance10~500Hz, 2G 10min,/1cycle,duration:60min each shaft
SafetyVoltage withstand capacityInput-output:2KVAC  Input-earth:1.5KVAC   Output-earth:0.5KVAC

Insulation resistanceInput-output, Input-earth ,Output-earth:100M Ohms/500VDC

Executive StantandSafety StandardsCE
EMC StandardsDesign refer to FCC part 15J Conduction Class B
OthersWeight 0.8KGS
Package18pcs/ctn 44.5*26.5*31

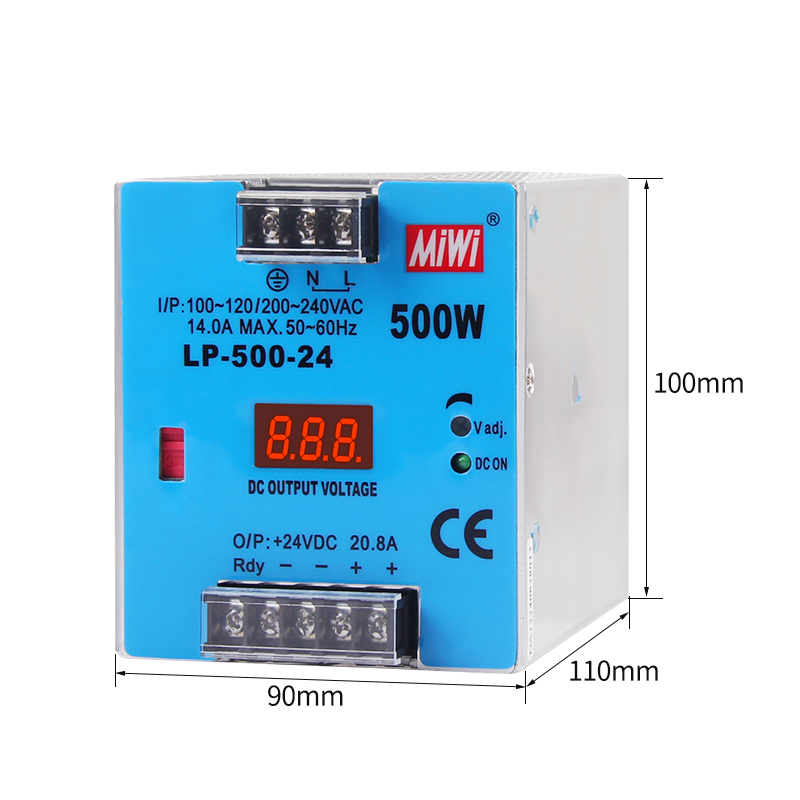

size 100*90*110(L*W*H)
Notes1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃.                                           2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.                                                                                                                                                          3.The tolerance is the sum of setting voltage error , voltage and current regulation factor.
