Item

Technical index

Output

DC Output Voltage

24V

36V

48V

Rated Current

33.3A

22.2A

16.7A

Rated Power

800W

800W

800W

Ripple & Noise

﹤340mv

﹤360mv

﹤480mv

Voltage Tolerance

±1%

±1%

±1%

Voltage Adj. Range

±10%

Load Regulation

±1%

±1%

±1%

Line Regulation

±1%

±1%

±1%

Input

Voltage Range

100VAC-240VAC  47Hz-63Hz/ 260VDC-380VDC

Efficiency

＞91%

＞92%

＞92%

AC Current

﹤7A  230VAC

Power factor

PF＞0.95/230VAC

Setup, Rise Time

200ms,50ms,20ms,230VAC

Protection

Overload

120%-145% cut off output

Over Voltage

＞115%-140% cut off output

Short Circuit

Cut off output

Over Temperature

 Directly dissipating heat by fan

Environment

Working Temp, Humidity

-10℃~+50℃; 20%~90RH

Storage Temp, Humidity

-20℃~+85℃; 10%~95RH

Safety

Working Frequency Withstand Voltage

Input-Output: 1.5KVAC, Input-earth: 1.5KVAC, Output-earth: 0.5KVAC   1min

Insulation Resistance

 Between Input and Output, Input and Shell,Output and Shell: 500VDC/100MΩ

Others

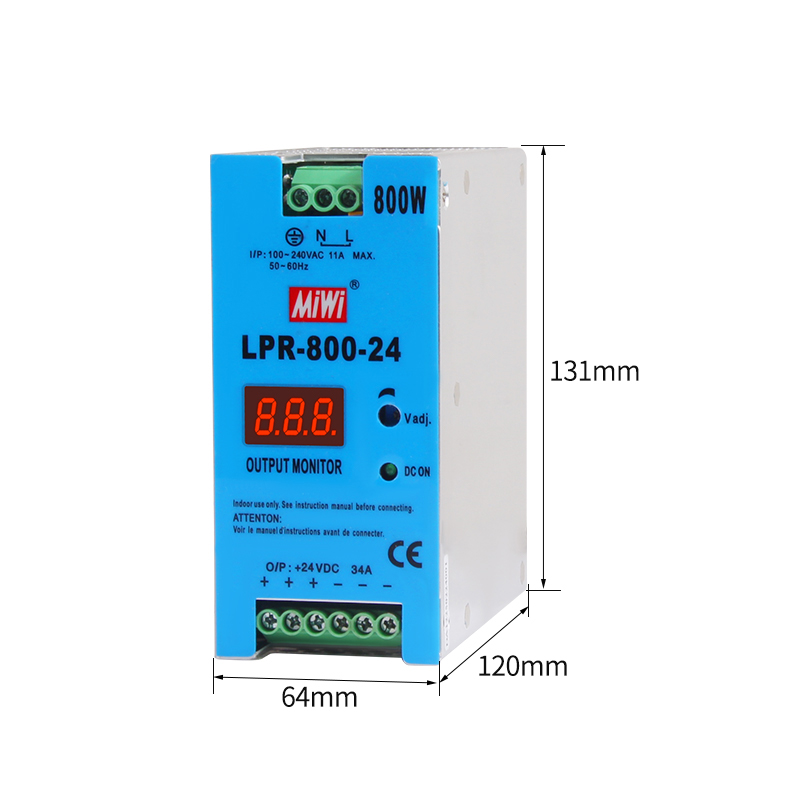

Dimension

131*120*64mm

Net Weight/Gross Weight

950/1020g
