NLP series is small size din rail type switching power supply
NLP series is small size din rail type switching power supply
You are here:Home >> Proudct >> NLP series is small size din rail type switching power supply
NLP series is small size din rail type switching power supply

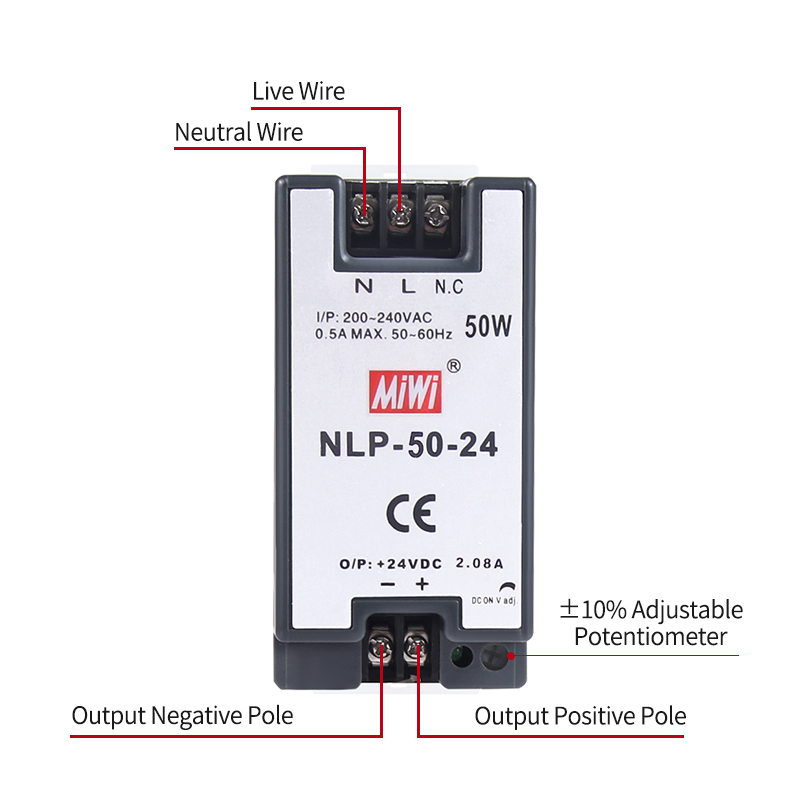

NLP-50
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：maggie-liu@yqmingwei.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description
Model   /   SpecificationNLP-40-12NLP-40-24NLP-50-12NLP-50-24
OutputDC Output Voltage12V24V12V24V
Output Voltage tolerance± 1%
Rated Output Current3A1.67A3.6A2.08A
Output Current Range0-3A0-1.67A0-3.6A0-2.08A
DC Output Power36W40W43.2W50W
Tripple and Noise120mVp-p240mVp-p120mVp-p240mVp-p
Adjustable Range for DC Voltage11.4-13.2V 20.5-26.5V11.4-13.2V 20.5-26.5V
InputAC Input Voltage Range180-264VAC  200-380VDC 47~63Hz;
AC input current0.5/230VAC
Efficiency85%87%85%87%
AC Inrush CurrentCold-Start Current: 10A/115V, 20A/230V
Leakage Current<3.5mA/240VAC
ProtectionOverload Protection110%-150%
Protection mode: cut off output and restart
Over Voltage Protection13.8-16.2V27-30V13.8-16.2V27-30V
Protection mode: cut off output and reset automatically
EnvironmentWork Temperature Humidity-10℃~+50℃ , 20%~90%RH
Storage Temperature Humidity`-20℃~+85℃, 10%~95%RH
Shock resistance10~500Hz, 2G 10min,/1cycle,duration:60min each shaft
SafetyVoltage withstand capacityInput-output:2KVAC  Input-earth:1.5KVAC   Output-earth:0.5KVAC
Insulation resistanceInput-output, Input-earth ,Output-earth:100M Ohms/500VDC
Executive StantandSafety StandardsCE
EMC Standards...
OthersWeight 0.14KGS
Package120pcs/ctn 44.5*26.5*31
size 35*45*102(L*W*H)
Notes

1.All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃.

2.The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.

3.The tolerance is the sum of setting voltage error , voltage and current regulation factor.
