NLP series is small size din rail type switching power supply
NLP series is small size din rail type switching power supply
You are here:Home >> Proudct >> NLP series is small size din rail type switching power supply
NLP series is small size din rail type switching power supply
NLP-200
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：maggie-liu@yqmingwei.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description
Model   /   SpecificationNLP-200-12NLP-200-24NLP-240-12NLP-240-24
OutputDC Output Voltage12V24V12V24V
Output Voltage tolerance± 1%
Rated Output Current15A8.3A16.6A10A
Output Current Range0-15A0-8.3A0-16.6A0-10A
DC Output Power180W200W200W240W
Tripple and Noise120mVp-p240mVp-p120mVp-p240mVp-p
Adjustable Range for DC Voltage11.4-13.2V 20.5-26.5V11.4-13.2V 20.5-26.5V
InputAC Input Voltage Range180-264VAC  248-373VDC 47~63Hz;
AC input current0.9A/230VAC
Efficiency87%87%87%89%
AC Inrush Current20A/230V
Leakage Current<3.5mA/240VAC
ProtectionOverload Protection110%-150%
Protection mode: cut off output and restart
Over Voltage Protection13.8-16.2V27-30V13.8-16.2V27-30V
Protection mode: cut off output and reset automatically
EnvironmentWork Temperature Humidity-10℃~+50℃ , 20%~90%RH
Storage Temperature Humidity`-20℃~+85℃, 10%~95%RH
Shock resistance10~500Hz, 2G 10min,/1cycle,duration:60min each shaft
SafetyVoltage withstand capacityInput-output:2KVAC  Input-earth:1.5KVAC   Output-earth:0.5KVAC
Insulation resistanceInput-output, Input-earth ,Output-earth:100M Ohms/500VDC
Executive StantandSafety StandardsCE
EMC Standards...
OthersWeight 0.42KGS
Package30pcs/ctn 37*30*24.5

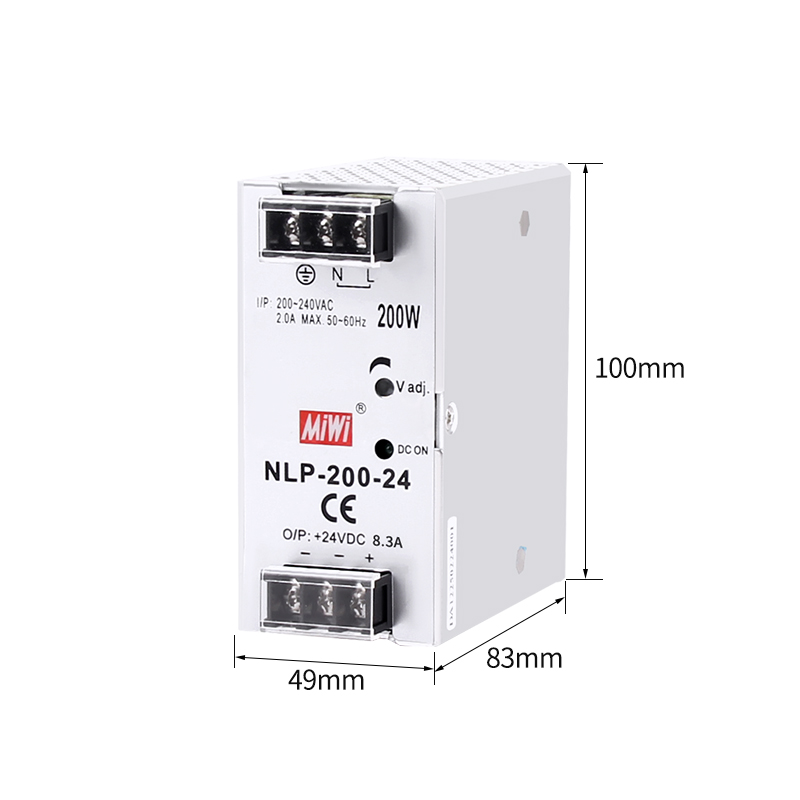

size 83*49*100(L*W*H)
Notes

1.All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃.

2.The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.

3.The tolerance is the sum of setting voltage error , voltage and current regulation factor.
