NLP series is small size din rail type switching power supply
NLP series is small size din rail type switching power supply
You are here:Home >> Proudct >> NLP series is small size din rail type switching power supply
NLP series is small size din rail type switching power supply

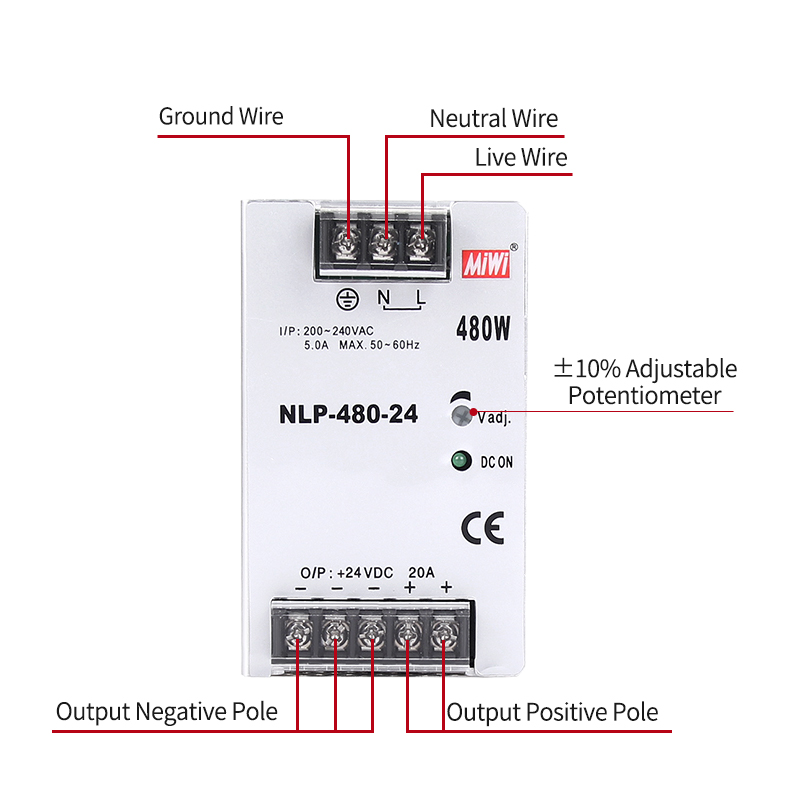

NLP-480
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：maggie-liu@yqmingwei.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description
Model   /   SpecificationNLP-360-24NLP-480-24
OutputDC Output Voltage24V24V
Output Voltage tolerance± 1%
Rated Output Current15A20A
Output Current Range0-15A0-16.6A0-10A
DC Output Power360W480W
Tripple and Noise240mVp-p300mVp-p
Adjustable Range for DC Voltage20.5-26.5V20.5-26.5V
InputAC Input Voltage Range180-264VAC  248-373VDC 47~63Hz;
AC input current4.8A/230VAC
Efficiency86%86%
AC Inrush Current30A/230V
Leakage Current<3.5mA/240VAC
ProtectionOverload Protection110%-150%
Protection mode: overpower protection
Over Voltage Protection27-30V
Protection mode: cut off output and reset automatically
EnvironmentWork Temperature Humidity-10℃~+50℃ , 20%~90%RH
Storage Temperature Humidity`-20℃~+85℃, 10%~95%RH
Shock resistance10~500Hz, 2G 10min,/1cycle,duration:60min each shaft
SafetyVoltage withstand capacityInput-output:2KVAC  Input-earth:1.5KVAC   Output-earth:0.5KVAC
Insulation resistanceInput-output, Input-earth ,Output-earth:100M Ohms/500VDC
Executive StantandSafety StandardsCE
EMC Standards...
OthersWeight 0.5KGS
Package30pcs/ctn 38*30*28
size 100*60*110(L*W*H)
Notes

1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃.

2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.

3.The tolerance is the sum of setting voltage error , voltage and current regulation factor.
