S series is regular switching power supply
S-1000
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：553168801@qq.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description

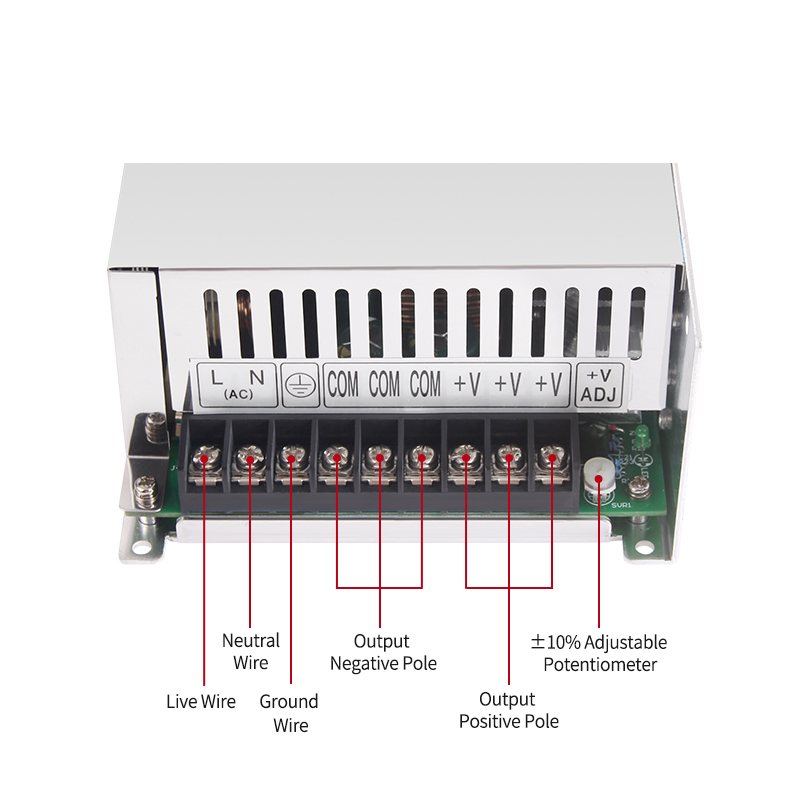

S-1000  1000W Switching Power Supply
 Item Technical index

Output		DC Output Voltage24V36V48V
Rated Current40A27.5A20A
Rated Power960W990W960W
Ripple & Noise ﹤150mv﹤240mv﹤240mv
Voltage Tolerance  ±1%±1%±1%

±10%
Output Voltage Adj. Range
Load Regulation±1%±1%±1%
Line Regulation±1%±1%±1%
InputVoltage Range 180VAC-264VAC  47Hz-63Hz/260VDC-380VDC
Efficiency＞82%＞84%＞86%
AC Current﹤9A 230VAC
Setup, Rise Time  200ms,50ms,20ms,230VAC
Protection
120%-145% cut off output
Overload
Over Voltage＞115%-140% cut off output
Short CircuitCut off output
Over TemperatureRTH2＞50℃ Fan Start ＞90℃ cut off output
EnvironmentWorking Frequency Withstand Voltage-10℃~+50℃;20%~90RH
Storage Temp, Humidity-20℃~+85℃;10%~95RH
 SafetyWorking Frequency Withstand VoltageBetween Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC  1min
Insulation ResistanceBetween Input and Output, Input and Shell,Output and Shell: 500VDC/100MΩ
 OthersDimension241*125*66
Net Weight/Gross Weight1318/1383g
