Product Description

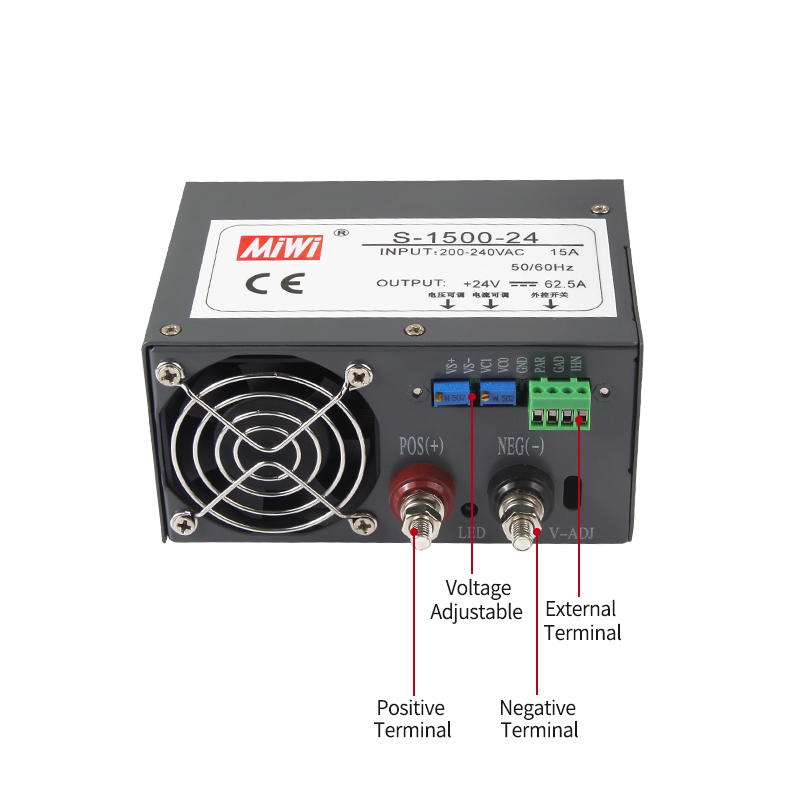

S-1500  1500W Switching Power Supply
ItemTechnical index
OutputDC Output Voltage12V24V36V48V
Rated Current0-125A0-62.5A0-41.6A0-31.2A
Rated Power1500W1500W1497.6W1497.6W
Ripple & Noise 150mvp-p240mvp-p360mvp-p480mvp-p
Voltage Tolerance  ±1%±1%±1%±1%
Voltage Adj. Range0-13.8V0-26.4V0-39.6V0-52.8V
Load Regulation±0.5%±0.5%±0.5%±0.5%
Line Regulation±0.5%±0.5%±0.5%±0.5%
InputVoltage Range
200VAC-240VAC  47Hz-63Hz
Efficiency 83%85%85%87%
AC Current15A
Power factor0.65
Setup, Rise Time   200ms, 50ms,20ms,230VAC
ProtectionOverloadRecovers automatically after constant current voltage goes down
Over Voltage＞115%-135% shut down o/p voltage, recovers automatically
Short CircuitShut down o/p voltage,recovers automatically
Over TemperatureDirectly dissipating heat by fan, ＞85% cut off output
EnvironmentWorking Temp, Humidity-10°C~+50°C; 20%~95RH
Storage Temp, Humidity-20°C~+85°C; 10%~95RH
SafetyWorking Frequency Withstand VoltageBetween Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC  1min
Insultation Resisance Between Input and Output, Input and Shell,Output and Shell: 500VDC/100MΩ
OthersDimension291×132×68mm
Net Weight/Gross Weight2500G/2600G
