LRS series ultra-thin switching power supply
LRS series ultra-thin switching power supply
You are here:Home >> Proudct >> LRS series ultra-thin switching power supply

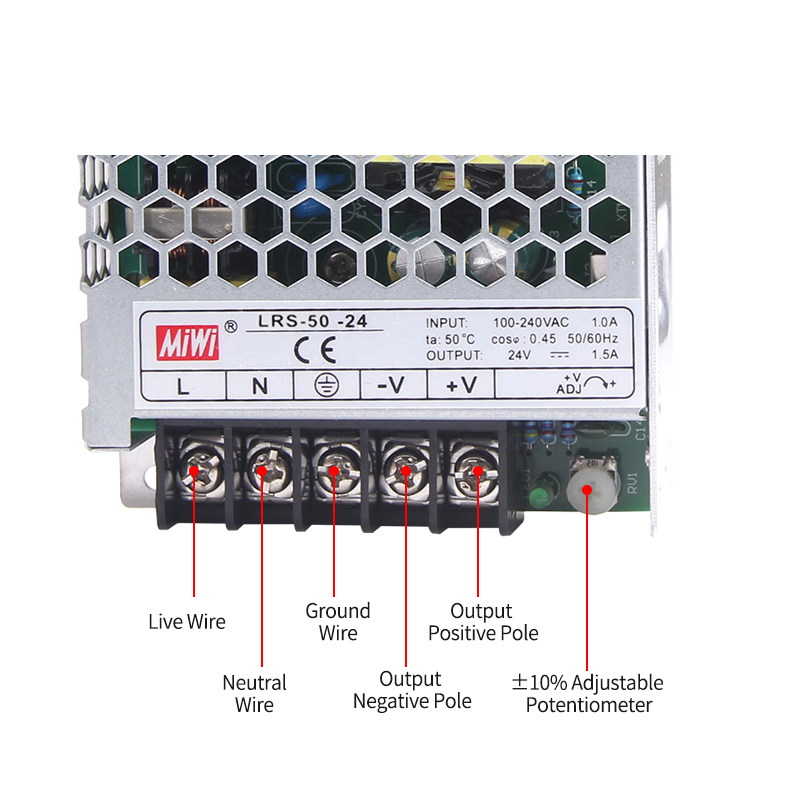

LRS series ultra-thin switching power supply
LRS-50
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：553168801@qq.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description
LRS-50 SERIES                                                     50W SWITCHING  POWER SUPPLY
MODELLRS-50-5LRS-50-12 LRS-50-24 LRS-50-36LRS-50-48
OUTPUTDC VOLTAGE5V12V24V36V48V
RATED CURRENT10A4.2A2.2A1.45A1.1A
RATED POWER50W50.4W52.8W52.2W52.8W
RIPPLE & NOISE (max.) Note.280mVp-p 120mVp-p 150mVp-p200mVp-p200mVp-p
VOLTAGE ADJ. RANGE±10%
VOLTAGE TOLERANCE Note.3±2%±1%±1%±1%±1%
LINE REGULATION±0.5%±0.5%±0.5%±0.5%±0.5%
LOAD REGULATION±1%±0.5%±0.5%±0.5%±0.5%
SETUP, RISE TIME Note.51000ms, 30ms/230VAC   2000ms, 30ms/115VAC at full load
HOLD UPTIME (Typ.)30ms/230VAC   12ms/115VAC at full load
INPUTVOLTAGE RANGE & FREQUENCY RANGE88 ~ 264VAC /  120 ~ 373VDC,  47 ~63Hz
EFFICIENCY (Typ.)83.00%86.00%88.00%89.00%90.00%
AC CURRENT0.95A/115VAC   0.56A/230VAC
INRUSH CURRENT COLD START 45A/230VAC
LEAKAGE CURRENT<0.75mA / 240VAC
PROTECTIONOVERLOAD≥110 ~ 130% rated output power, Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE≥115 ~ 145% rated output power, Protection type :Shut down o/p voltage, recovers automatically after restart
ENVIRONMENTWORKING TEMP. & HUMIDITY-30℃~+70℃;  20%~90RH
STORAGE TEMP. & HUMIDITY-40℃~+85℃;  10%~95RH
SAFETY &EMC      (Note 4)WITHSTAND VOLTAGEI/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC ,1 min
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:500VDC /100M Ohms at 25℃ 70%
OTHERSDIMENSION 98*82*30mm (L*W*H)
NET WEIGHT/GROSS WEIGHT230g/246g
