LRS series ultra-thin switching power supply
LRS series ultra-thin switching power supply
You are here:Home >> Proudct >> LRS series ultra-thin switching power supply
LRS series ultra-thin switching power supply
LRS-75
Contact information:
Brand：Qianxiang Electric Technology Co., Ltd
Mobile：+86-577-62627101
Email：553168801@qq.com
Address：Wenzhou Yueqing, Zhejiang, China
Share:
Product Description

LRS-75 SERIES                                                     75W SWITCHING  POWER SUPPLY
MODELLRS-75-5LRS-75-12 LRS-75-24 LRS-75-36LRS-75-48
OUTPUTDC VOLTAGE5V12V24V36V48V
RATED CURRENT14A6A3.2A2.1A1.6A
RATED POWER70W72W76.8W75.6W76.8W
RIPPLE & NOISE (max.) Note.2100mVp-p 120mVp-p 150mVp-p200mVp-p200mVp-p

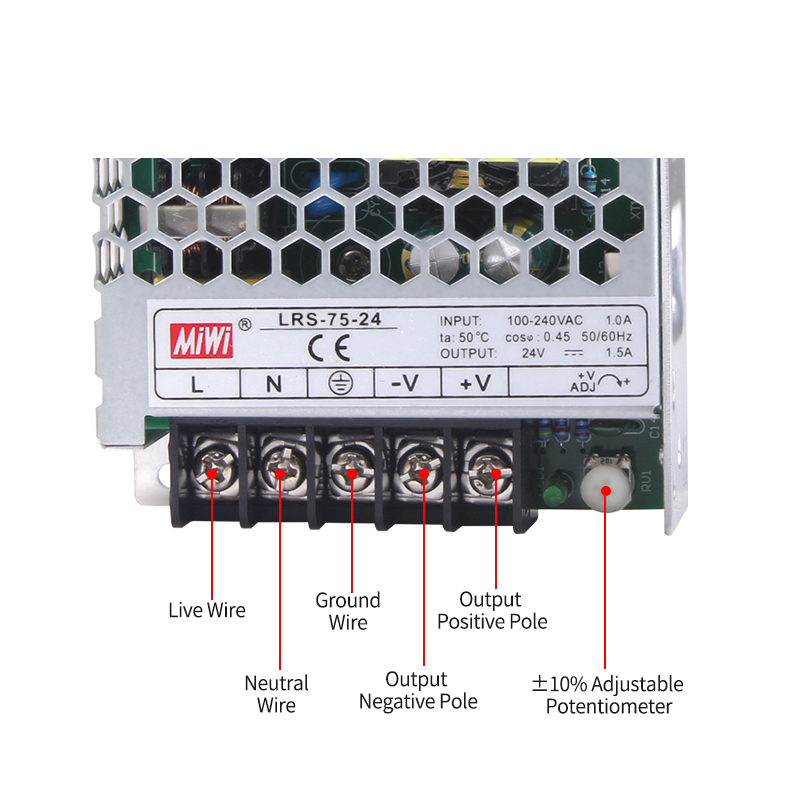

VOLTAGE ADJ. RANGE±10%
VOLTAGE TOLERANCE Note.3±2%±1%±1%±1%±1%
LINE REGULATION±0.5%±0.5%±0.5%±0.5%±0.5%
LOAD REGULATION±1%±0.5%±0.5%±0.5%±0.5%
SETUP, RISE TIME Note.5500ms, 30ms/230VAC   500ms, 30ms/115VAC at full load
HOLD UPTIME (Typ.)60ms/230VAC   12ms/115VAC at full load
INPUTVOLTAGE RANGE & FREQUENCY RANGE85 ~ 264VAC /  120 ~ 373VDC,  47 ~63Hz
EFFICIENCY (Typ.)86.50%89.00%90.00%91.50%91.50%
AC CURRENT1.4A/115VAC   0.85A/230VAC
INRUSH CURRENT COLD START  65A/230VAC
LEAKAGE CURRENT<0.75mA / 240VAC
PROTECTIONOVERLOAD≥110 ~ 130% rated output power, Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE≥115 ~ 145% rated output power, Protection type :Shut down o/p voltage, recovers automatically after restart
ENVIRONMENTWORKING TEMP. & HUMIDITY-30℃~+70℃;  20%~90RH
STORAGE TEMP. & HUMIDITY-40℃~+85℃;  10%~95RH
SAFETY &EMC      (Note 4)WITHSTAND VOLTAGEI/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC ,1 min
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:500VDC /100M Ohms at 25℃ 70%
OTHERSDIMENSION 99*97*30 (L*W*H)
NET WEIGHT/GROSS WEIGHT250g/272g
