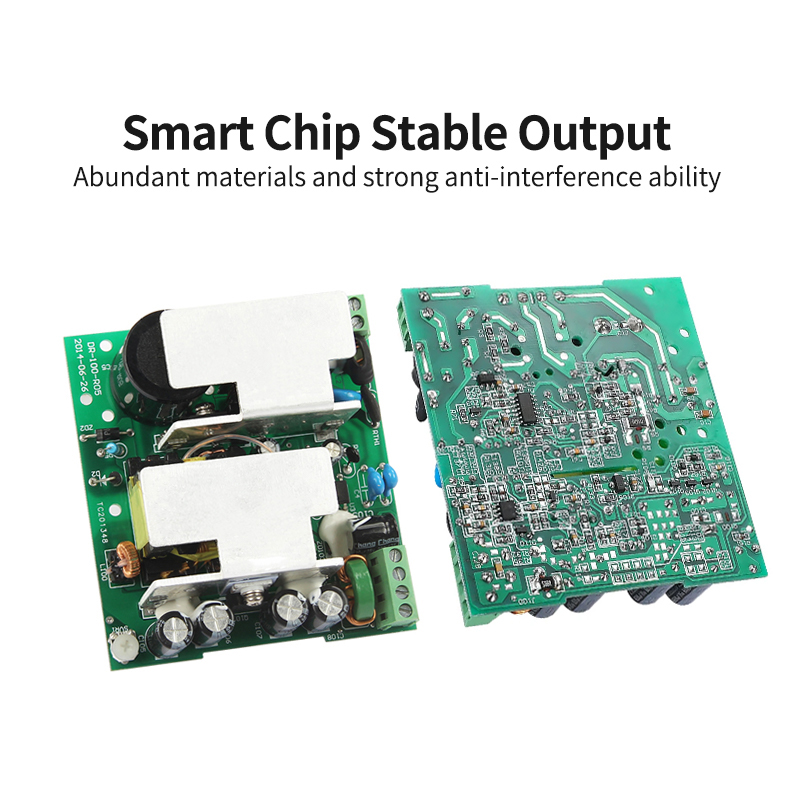

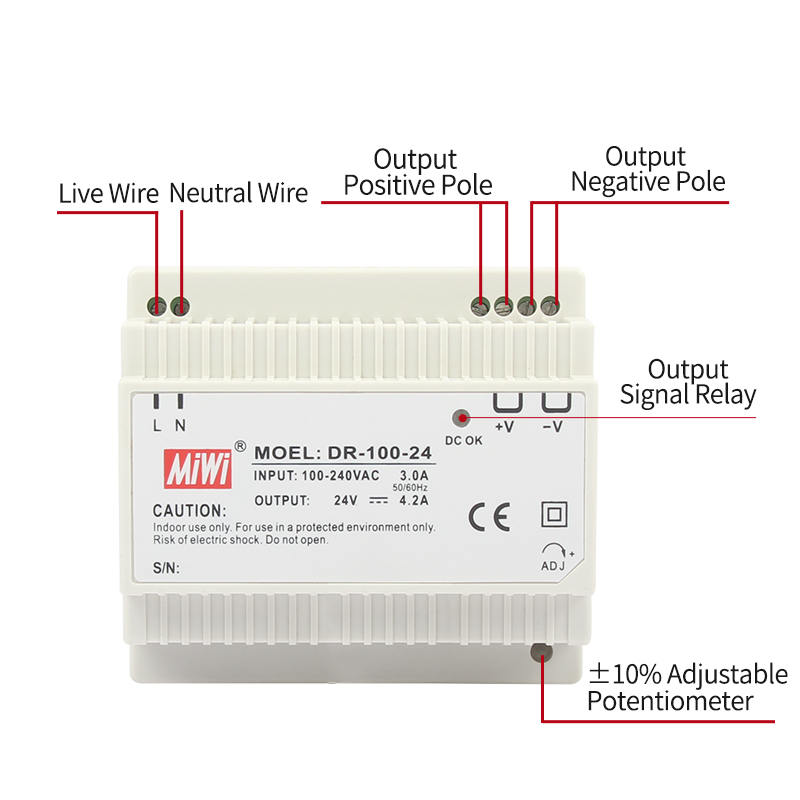

| Model | DR-100-12 | DR-100-15 | DR-100-24 |
| OUTPUT | DC Voltage | 12V | 15V | 24V |
| Rated Current | 7.5A | 6.5A | 4.2A |
| Current Range | 0-7.5A | 0-6.5A | 0-4.2A |
| Rated Power | 90W | 97.5W | 100.8W |
| Ripple & Noise (max.) Note.2 | 120mVp-p | 120mVp-p | 150mVp-p |
| Voltage Adj. Range | 12-15V | 15-18V | 24-29V |
| Voltage Tolerance Note.3 | ±2% | ±1% | ±1% |
| LINE REGULATION | ±1% | ±1% | ±1% |
| LOAD REGULATION | ±1% | ±1% | ±1% |
| Setup, Rise Time | 2700ms, 80ms/230VAC 2700ms, 80ms/115VAC at full load |
| Hold Up Time | 50ms/230VAC 18ms/115VAC at full load |
| INPUT | Voltage Range | 88 ~ 264VAC 124 ~ 370VDC |
| FREQUENCY RANGE | 47~63Hz |
| AC Current | 3A/115VAC 1.6A/230VAC |
| Efficiency | 87% | 87% | 89% |
| Inrush Current | COLD START 30A/115VAC 45A/230VAC |
| PROTECTION | Over Load | 105%~135% rated output power |
| Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Over Voltage | 16 ~ 20V | 19 ~ 23V | 30 ~ 35V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| OVER TEMPERATURE | 90°C± 15°C (RTH2) detect on heat sink of power transistor |
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down |
| ENVIRONMENT | Working Temp., | -20°C~+60°C; (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| Storage Temp., Humidity | -40°C~+85°C; 10%~95%RH |
| Temp. Coefficient | ±0.03%/°C(0~50°C) |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
| SAFETY | Withstand Voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH |
| EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
| EMC IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A |
| OTHERS | MTBF | 486K hrs min. MIL-HDBK-217F (25°C ) |

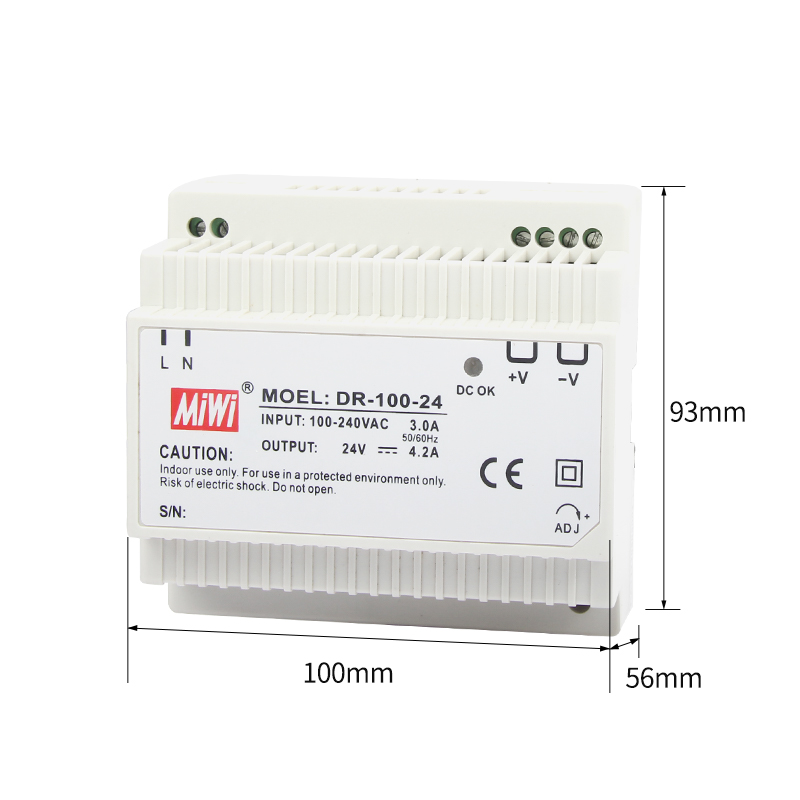

| DIMENSION | 100*93*56mm (W*H*D) |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Harmonic current test @ 90% load. 6. Under short circuit or overload >150% conditions, output voltage may shut down for 5 sec. and then go into constant current |
