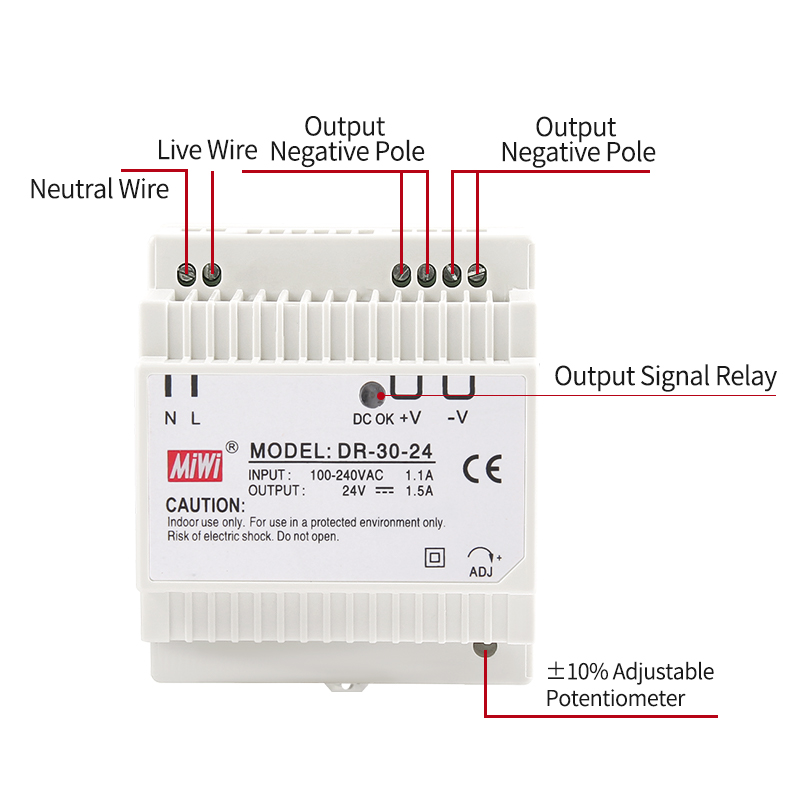

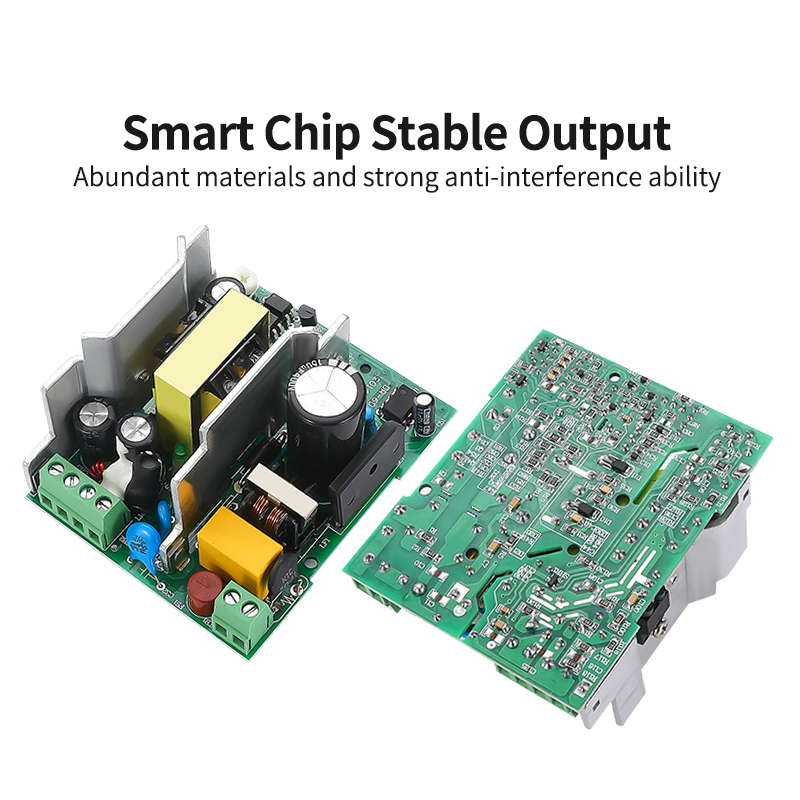

| Model | DR-30-5 | DR-30-12 | DR-30-15 | DR-30-24 |
| OUTPUT | DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 3A | 2A | 2A | 1.5A |
| Current Range | 0-3A | 0-2A | 0-2A | 0-1.5A |
| Rated Power | 15W | 24W | 30W | 36W |
| Ripple & Noise (max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
| Voltage Adj. Range | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V |
| Voltage Tolerance Note.3 | ±2% | ±1% | ±1% | ±1% |
| LINE REGULATION | ±1% | ±1% | ±1% | ±1% |
| LOAD REGULATION | ±1% | ±1% | ±1% | ±1% |
| Setup, Rise Time | 100ms,30ms/230VAC 100ms,30ms/115VAC at full load |
| Hold Up Time | 100ms/230VAC 21ms/115VAC at full load |
| INPUT | Voltage Range | 85~264VAC 120~370VDC |
| FREQUENCY RANGE | 47~63Hz |
| AC Current | 0.88A/115V 0.48A/230V |
| Efficiency | 74% | 81% | 82% | 83% |
| Inrush Current | Cold start 15A/115V 30A/230V |
| PROTECTION | Over Load | 105%~160% rated output power |
| Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Over Voltage | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V |
| Protection type: Shut down o/p voltage, re-power on to recover |
| ENVIRONMENT | Working Temp., | -20°C~+60°C; (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| Storage Temp., Humidity | -40°C~+85°C; 10%~95%RH |
| Temp. Coefficient | ±0.03%/°C(0~50°C) |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
| SAFETY | Withstand Voltage | I/P-O/P: 3KVAC |
| Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC |
| EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
| EMC IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A |
| OTHERS | MTBF | 441.5K hrs min. MIL-HDBK-217F (25°C) |
| DIMENSION | 78*93*56mm (W*H*D) |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
