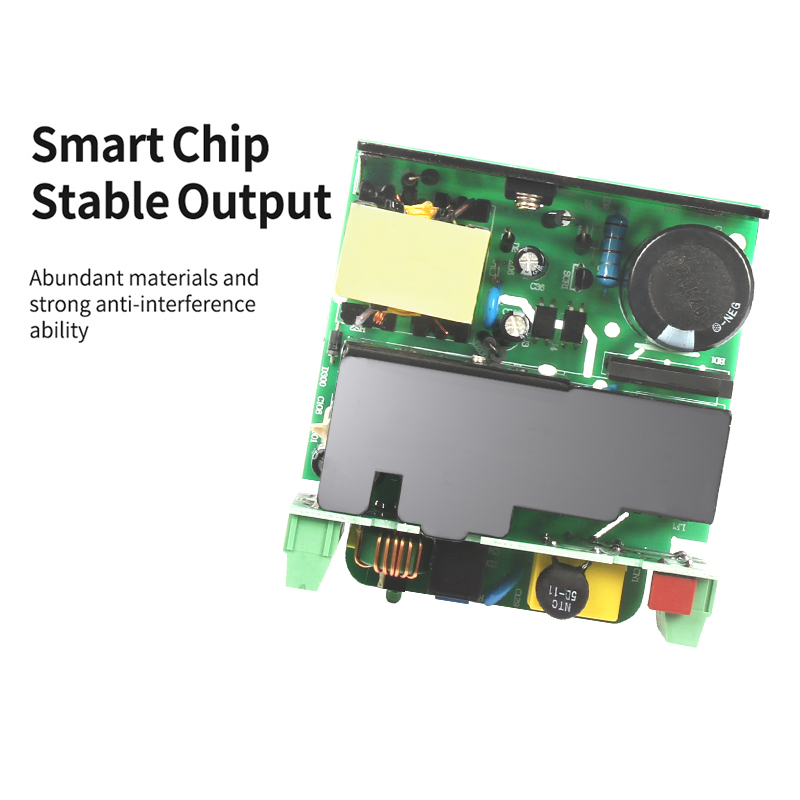

| MODEL | MDR-40-5 | MDR-40-12 | MDR-40-15 | M DR-40-24 | MDR-40-48 |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 6A | 3.33A | 2.66A | 1.7A | 0.83A |
| CURRENT RANGE | 0~6A | 0-3.33A | 0-2.66A | 0 ~ 1.7A | 0 ~ 0.83A |
| RATED POWER | 30W | 40W | 39.9W | 40.8W | 39.8W |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p |
| VOLTAGE ADJ. RANGE | 5-6V | 12 ~ 15V | 15-18V | 24 - 30V | 48 - 56V |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ± 1.0% | ± 1.0% |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ± 1.0% | ± 1.0% |
| SETUP, RISE TIME Note.5 | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load |
| HOLD UPTIME (Typ.) | 50ms/230VAC 20ms/115VAC at full load |
| VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| INPUT | FREQUENCY RANGE | 47 ~63Hz |
| EFFICIENCY (Typ.) | 78% | 86% | 86% | 88% | 88% |
| AC CURRENT (Typ.) | 1.1 A/115 VAC 0.7A/230VAC |
| INRUSH CURRENT (Typ.) | COLD START 30A/115VAC,60A/230VAC |
| LEAKAGE CURRENT | <1mA/240VAC |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 6.25 - 7.25V | 15.6 -18V | 19.5-22.5V | 31.2-36V | 57.6-64.8V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| FUNCTION | DC OK ACTIVE SIGNAL (max.) | Relay contact rating{max.): 30V/1A resistive |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85C, 10 ~ 95% RH |
| TEMP. COEFFICIENT | ±0.03%/C (0 ~ 50℃) |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
 SAFETY &EMC (Note 4) | WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH |
| EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 |
| EMC IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A |
| OTHERS | MTBF | 301.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 40*90*100mm (W*H*D) |
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3.Tolerance : includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5.Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. |
|
|
|
|
