SP-600_Qianxiang Electric Technology Co., Ltd

Product Description

Model/Spec.	SP-600-12	SP-600-13.5	SP-600-15	SP-600-24	SP-600-27	SP-600-48
DC Output Voltage	12V	13.5V	15V	24V	27V	48V
Iutput Voltage Error	± 1%	± 1%	± 1%	± 1%	± 1%	± 1%
Rated Output Current	50A	44A	40A	25A	22A	12.5A
Output Current Range	0-50A	0-44A	0-40A	0-25A	0-22A	0-112.5A
Tripple and Noise	240mVp-p	240mVp-p	240mVp-p	240mVp-p	200mVp-p	300mVp-p
Iniet Stability	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Tolerance Voltage	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%
DC Output Power	600W	594W	600W	600W	594W	600W
Efficiency	84%	84%	83%	86%	86.5%	87%
Adjustable Range for DC Voltage	10 ~ 13.2V	12 ~ 15V	13.5 ~ 18V	20 ~ 26.4V	24 ~ 30V	41 ~ 56V
AC Input Voltage Range	88 ~ 264VAC 124 ~ 370VDC 47-63HZ
Power factor	PF>0.95/230VAC PF>0.95/115VAC at full load
Input Current	7A/115VAC 3.5A/230VAC
AC Inrush Current	Cold-Start Current:18A/115VAC 36A/230VAC
Leakage Current	<3.5mA/240VAC
Overload Protection	105%~150% rated output power ,Protection type : Constant current limiting, recovers automatically after fault condition is removed
Over Voltage Protection	13.8 ~ 16.2V	13.8 ~ 16.2V	18 ~ 21V	27.6 ~ 32.4V	31 ~ 36.5V	57.6 ~ 67.2V
Over Voltage Protection	Protection type : Hiccup mode, recovers automatically after fault condition is removed
FAN CONTROL, O.T.P.	RTH1 or RTH2≥50℃JFAN ON, ≤4℃ JFAN OFF, ≧70℃ output shutdown

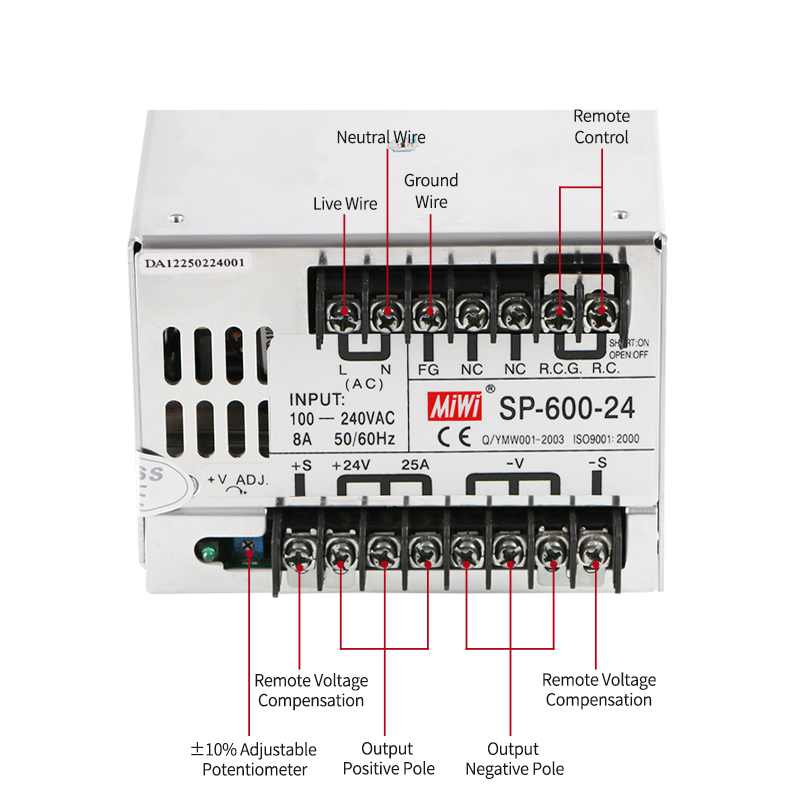

REMOTE CONTROL(OPTION)	RC+/RC-: Short = power on ; Open = power off
Over Temperature	80℃± 5℃(70℃±5℃J 3.3V,5V only) (TSW1 : detect on heatsink of power transistor)
Over Temperature	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
Temperature Coefficient	±0.03%/℃ (0 ~ 50℃)
Start, Rise, Hold time	1500ms, 50ms at full load ,hold time:24ms at full load
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working Temperature and Humidity	.-10~+50℃ (Refer to "Derating Curve"), 20 ~ 90% RH non-condensing
Storage Temperature and Humidity	`-20℃~+85℃, 10%~95%RH
Overall Dimension	18512093mm
MTBF	133.4k hrs min.
Safety Standards	CE
