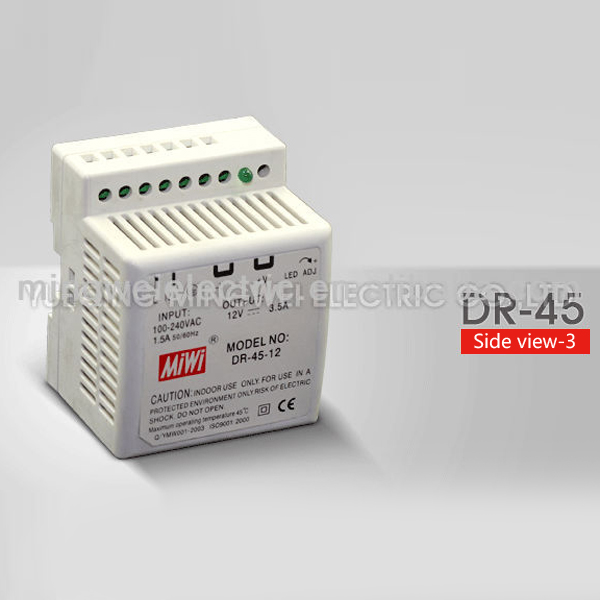

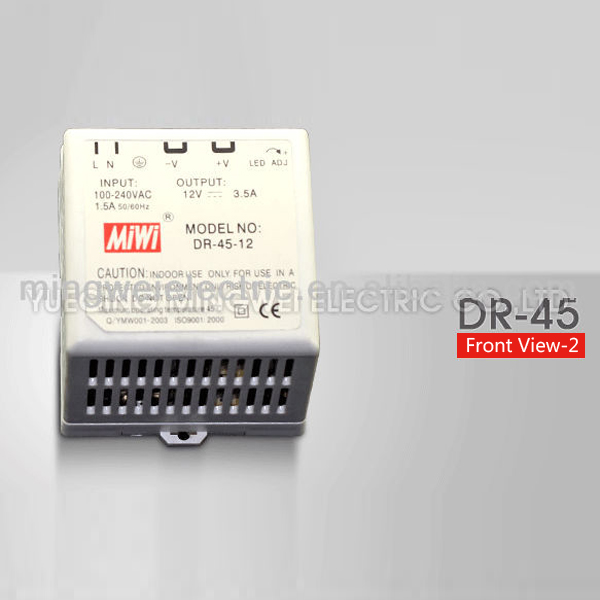

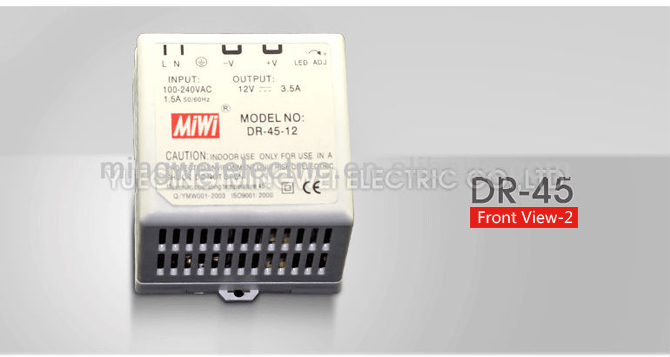

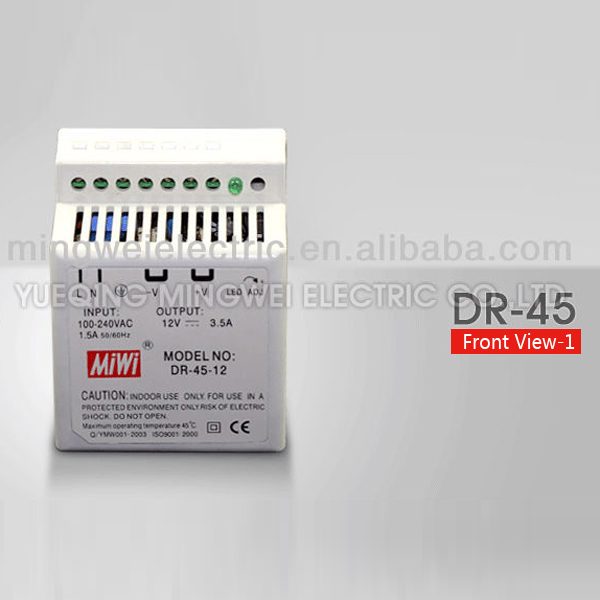

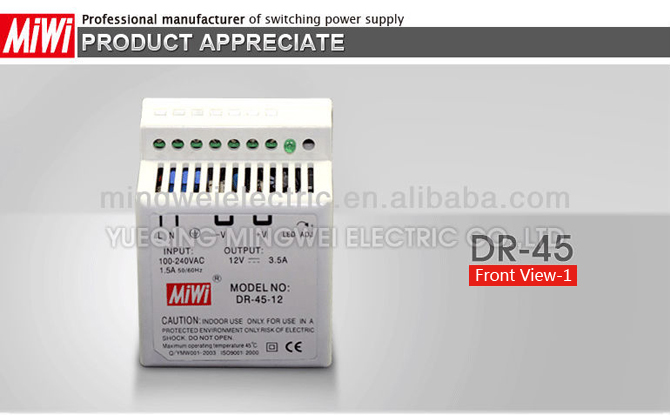

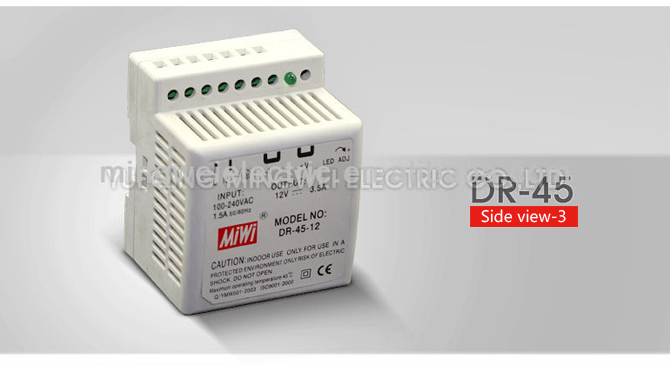

45W Din-rail Power Supply

  • Product Overview
  • Send Inquiry
  • 1.Features

    Universal AC input/ full range
    Protections: Short circuit/Over load/Over voltage/Over temperature
    Cooling by free air convection
    Can be installed on DIN rail TS-35/7.5 or 15
    LED indicator for power on
    100% full load burn-in test
    Fixed switching frequency at 100KHz
    2 years warranty

    2. Specification

    Model
    DR-45-5
    DR-45-12
    DR-45-15
    DR-45-24
    OUTPUT
    DC Voltage
    5V
    12V
    15V
    24V
    Rated Current
    5A
    3.5A
    2.8A
    2A
    Current Range
    0-5A
    0-3.5A
    0-2.8A
    0-2A
    Rated Power
    25W
    42W
    42W
    48W
    Ripple & Noise  (max.) Note.2
    100mVp-p
    200mVp-p
    240mVp-p
    480mVp-p
    Voltage Adj. Range
    4.75 ~ 5.5V
    10.8 ~ 13.2V
    13.5 ~ 16.5V
    21.6 ~ 26.4V
    Voltage Tolerance Note.3
    ±2%
    ±1%
    ±1%
    ±1%
    LINE REGULATION
    ±1%
    ±1%
    ±1%
    ±1%
    LOAD REGULATION
    ±1%
    ±1%
    ±1%
    ±1%
    Setup, Rise Time
    800ms, 60ms/230VAC at full load
    Hold Up Time
    60ms/230VAC at full load
    INPUT
    Voltage Range
    85~264VAC    120~370VDC
    FREQUENCY RANGE
    47~63Hz
    AC Current
    1.5A/115VAC          0.75A/230VAC
    Efficiency
    72%
    77%
    77%
    80%
    Inrush Current
    COLD START 28A/115VAC          56A/230VAC
    LEAKAGE CURRENT
    <1mA / 240VAC
    PROTECTION
    Over Load
    105%~150% rated output power
    Protection type: Constant current limiting, recovers automatically after fault condition is removed
    Over Voltage
    5.75 ~ 6.75V
    13.8 ~ 16.2V
    17.25 ~ 20.25V
    27.6 ~ 32.4V
    Protection type : Shut off o/p voltage, clamping by zener diode
    OVER TEMPERATURE
    Tj 135°C typically (U1) detect on heat sink of power transistor
    Protection type : Shut down o/p voltage, re-power on to recover
    ENVIRONMENT
    Working Temp.,
    -10°C~+50°C; (Refer to "Derating Curve")
    WORKING HUMIDITY
    20 ~ 90% RH non-condensing
    Storage Temp., Humidity
    -20°C~+85°C; 10%~95%RH
    Temp. Coefficient
    ±0.03%/°C(0~50°C)
    Vibration
    10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
    SAFETY
    Withstand Voltage
    I/P-O/P:3KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC
    Isolation Resistance
    I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
    EMC EMISSION
    Compliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3
    EMC IMMUNITY
    Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
    OTHERS
    MTBF
    364.6K hrs min.      MIL-HDBK-217F (25°C )
    DIMENSION
    93*78*67mm (L*W*H)

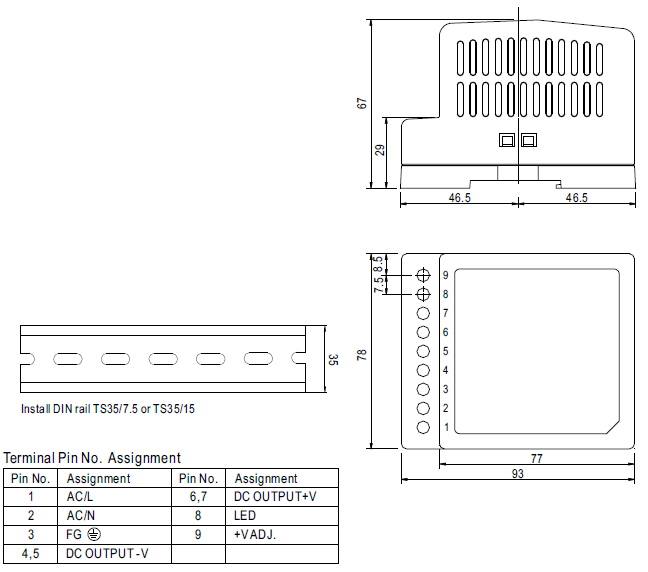

    3.Mechanical Specification

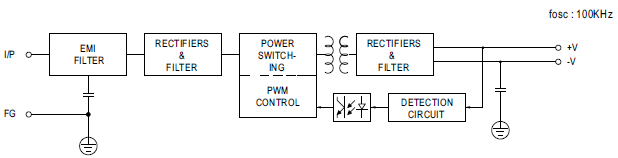

    4.Block Diagram

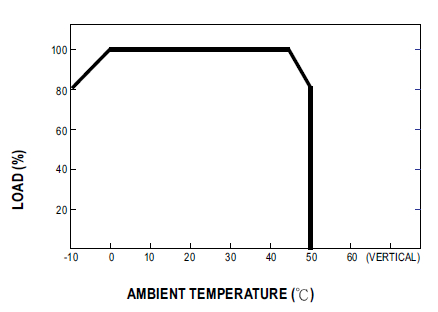

    5.Derating Curve

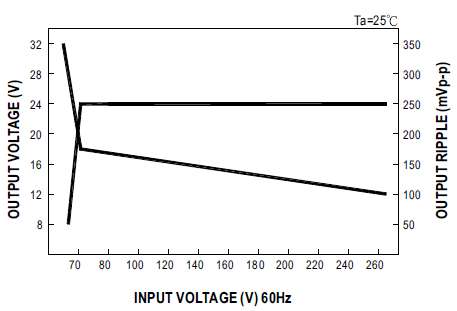

    6.Static Characteristics (24V)

    7. Please Note

    1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
    2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
    3. Tolerance : includes set up tolerance, line regulation and load regulation.
    4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
