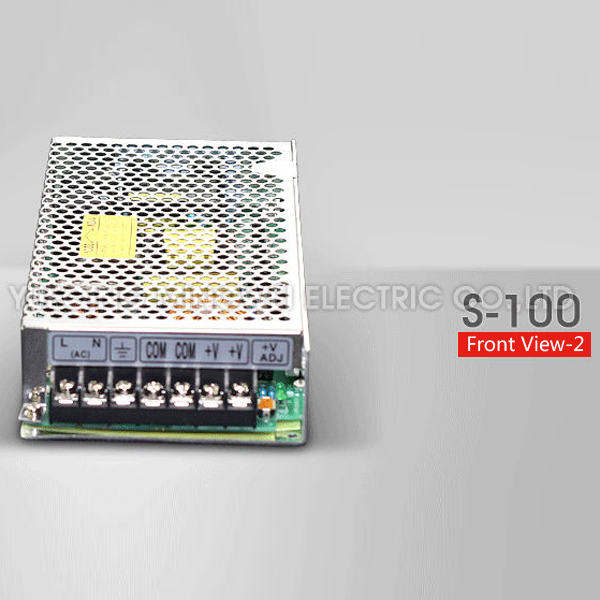

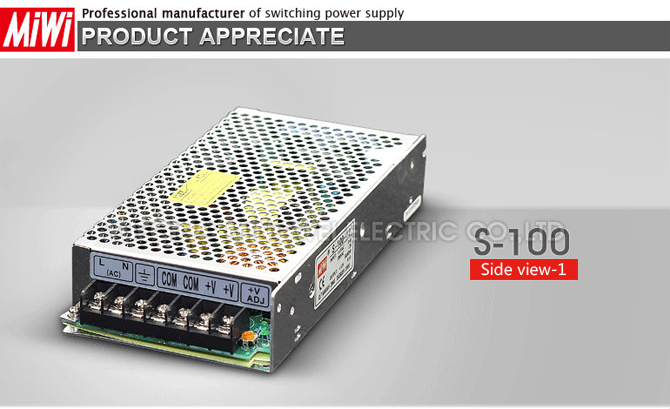

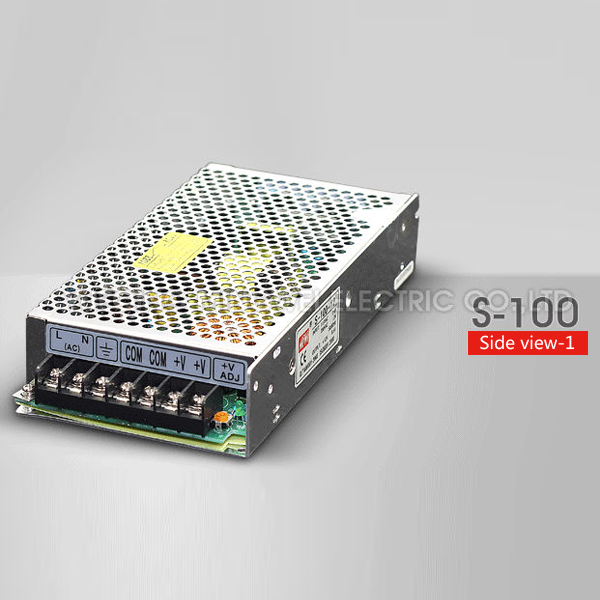

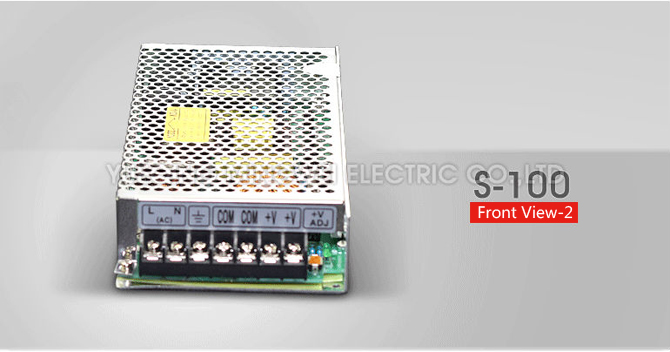

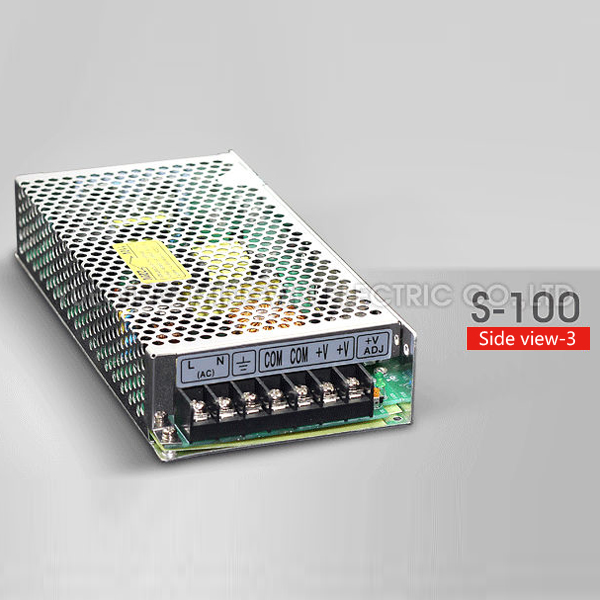

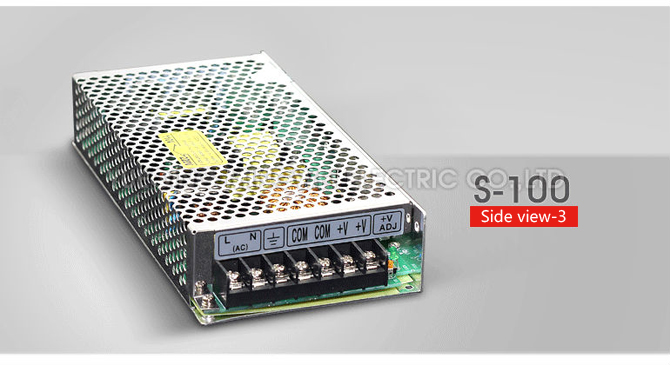

100W Switching Power Supply

  • Product Overview
  • Send Inquiry
  • 1.Features

    1. Input voltage selected by switch

    2. Protection: short-circuit/ over-load/ over-voltage protection

    3. Cooling by air

    4. 100% full load burn-in test

    5. 1 year warranty

    2. Specification

    Model
    Specification
    S-100-3V
    S-100-5V
    S-100-7.5V
    S-100-12V
    S-100-15V
    S-100-24V
    S-100-27V
    S-100-48V
    DC Output Voltage
    3V
    5V
    7.5V
    12V
    15V
    24V
    27V
    48V
    Iutput Voltage Error
    ± 2%
    ± 2%
    ± 1%
    ± 1%
    ± 1%
    ± 1%
    ± 1%
    ± 1%
    Rated Output Current
    20A
    20A
    13.6A
    8.5A
    6.7A
    4.5A
    3.7A
    2A
    Output Current Range
    0-20A
    0-20A
    0-13.6A
    0-8.5A
    0-6.7A
    0-4.5A
    0-3.7A
    0-2A
    Tripple and Noise
    100mVp-p
    100mVp-p
    100mVp-p
    100mVp-p
    100mVp-p
    100mVp-p
    100mVp-p
    100mVp-p
    Iniet Stability
    ± 0.5%
    ± 0.5%
    ± 0.5%
    ± 0.3%
    ± 0.3%
    ± 0.2%
    ± 0.2%
    ± 0.2%
    Tolerance Voltage
    ± 0.5%
    ± 0.5%
    ± 0.5%
    ± 0.3%
    ± 0.3%
    ± 0.2%
    ± 0.2%
    ± 0.2%
    DC Output Power
    60W
    100W
    102W
    102W
    100.5W
    108W
    99.9W
    96W
    Efficiency
    70%
    78%
    80%
    81%
    81%
    84%
    84%
    84%
    Adjustable Range for DC Voltage
    2.85-3.3
    4.75-5.5
    6.75-8.25
    10.8-13.2
    13.5-16.5
    21.6-26.4
    26-32
    43.2-52.8
    AC Input Voltage Range
    85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
    Input Current
    2.4A/115V    1.2A/230V
    AC Inrush Current
    Cold-Start Current: 30A/115V, 60A/230V
    Leakage Current
    <1mA/240VAC
    Overload Protection
    105%~150%   Type: Cut Output, Reset: Auto Recovery
    Over Voltage Protection
    …………
    High Temperature Protection
    …………
    Temperature Coefficient
    ± 0.03% /℃ (0~50℃)
    Start, Rise, Hold time
    200ms, 100ms, 20ms
    Vibration
    10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
    Withstand Voltage
    Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
    Isolation Resistance
    Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms
    Working Temperature and Humidity
    `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
    Storage Temperature and Humidity
    `20℃~+85℃, 10%~95%RH
    Overall Dimension
    199*98*38mm
    Weight
    0.65kgs
    Safety Standards
    CE
    EMC Standards
    Meet FCC Part 15J Conduction class B

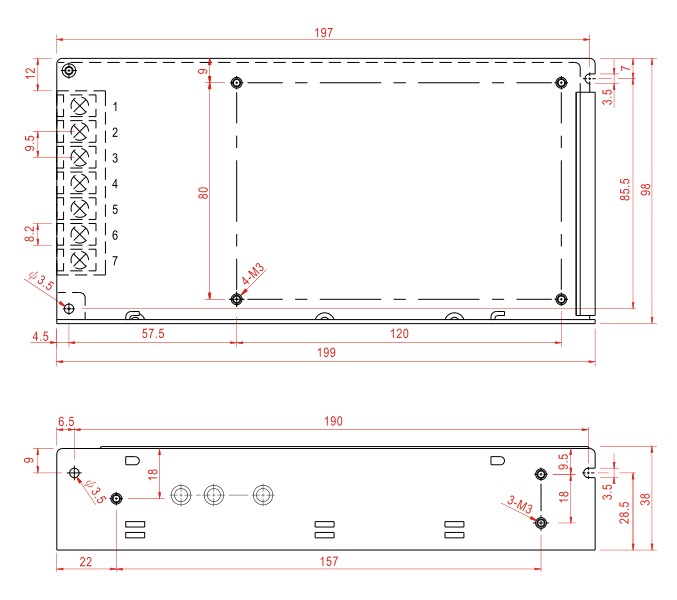

    3. Mechanical Dimension


    4.Please Note

    1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity.
    2. Error, include the setting error, line stability and load stability.
    3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
    4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.
    5. Load stability test: the load is from 0% to 100%, others 60%.
